Why choose E-bike Vision?

E-Bike Vision is passionate about battery production and puts all its dedication and craftsmanship into every battery produced in Haibach, Bavaria. The first E-Bike Vision batteries were available as early as 2012. Since then, the company has continued to grow, launching new products, expanding its location, hiring specialized staff, and building a loyal customer base. E-Bike Vision is a modern and high-tech battery manufacturer, but many processes are still performed by hand. Advanced technologies have been developed during the hardware and software development to ensure the best performing, most reliable, and safest E-bike batteries.

History

Akku Vision was founded in 2011 as E-Bike Vision and was acquired by Daniel Maiberger in 2014. That year, the company moved to a larger location. Due to its growth, Akku Vision moved to a building in Haibach, Germany, in 2020. That same year, together with Triathlon Batteries, TAV Battery was founded for purchasing and production. From the beginning, Akku Vision focused on high-quality e-bike batteries for the replacement market and grew significantly. Initially active in German-speaking countries, it is now an international company, primarily in Europe, under the E-Bike Vision brand. In the coming years, Akku Vision aims to expand its product range with new developments and trade.

Core values

E-Bike Vision stands for quality and service. The goal of E-Bike Vision is to provide customers with value-added solutions to support sustainable and profitable growth.

Alternatives for

E-bike Vision batteries are compatible with various brands, such as Panasonic, Yamaha, Bosch, and Gazelle.

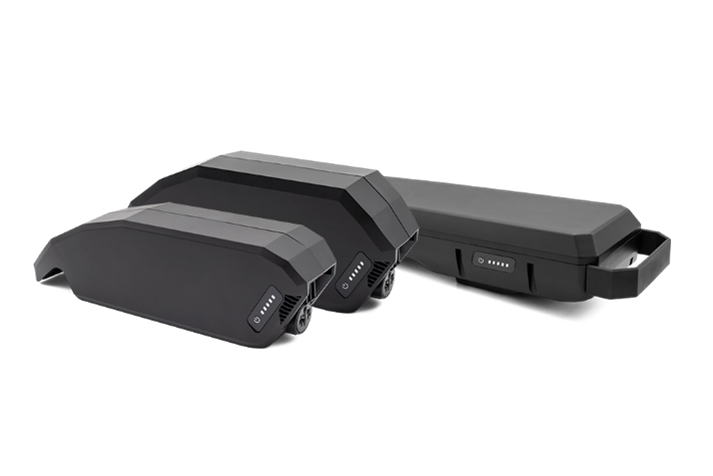

Bosch

Compatible with Bosch Active (Plus) / Performance (CX) drive system (lite)

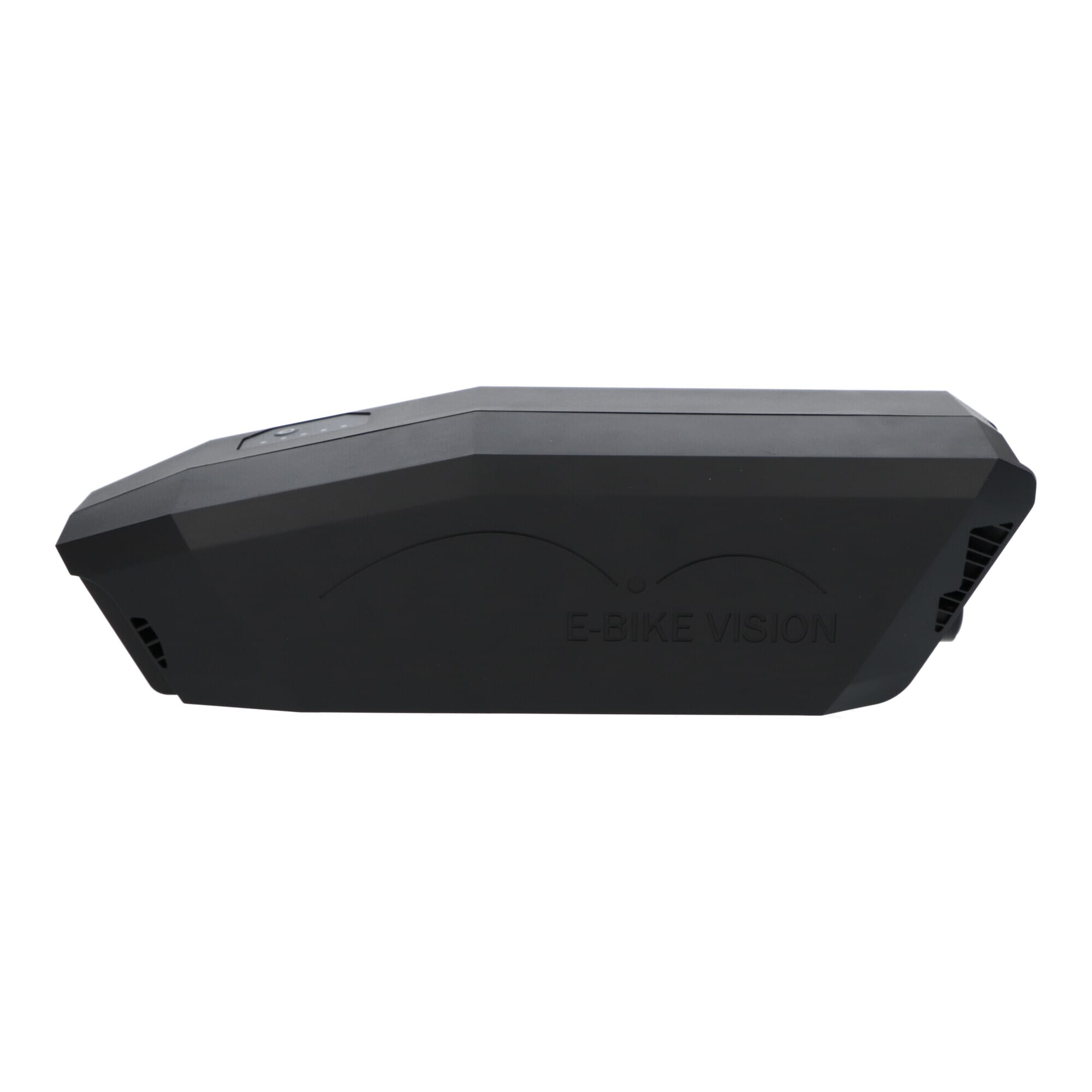

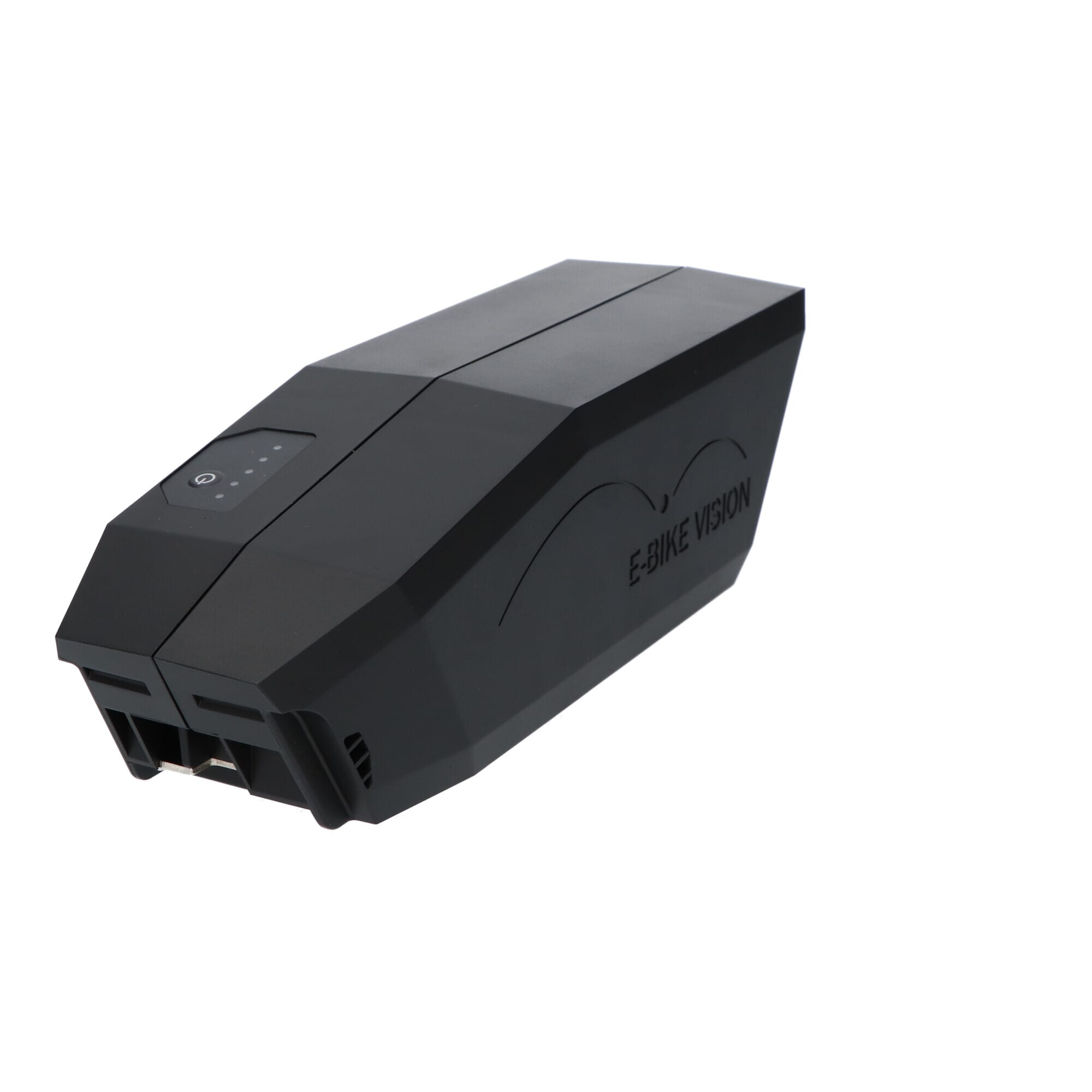

The E-Bike Vision Lite battery, compatible with a capacity of 360 Wh, is a lightweight battery, making it perfect for daily commuting, as well as providing extra range for longer bike trips.

More information

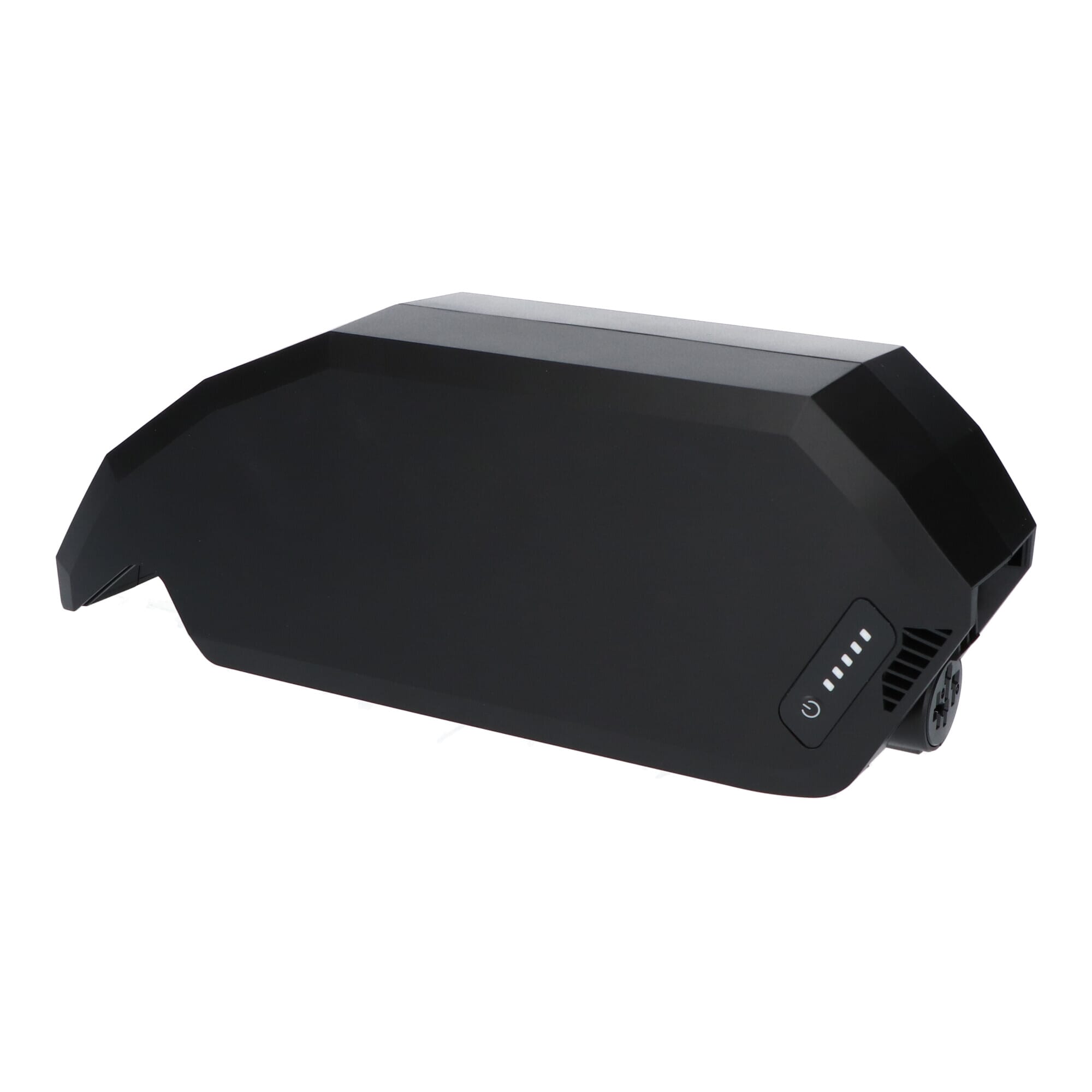

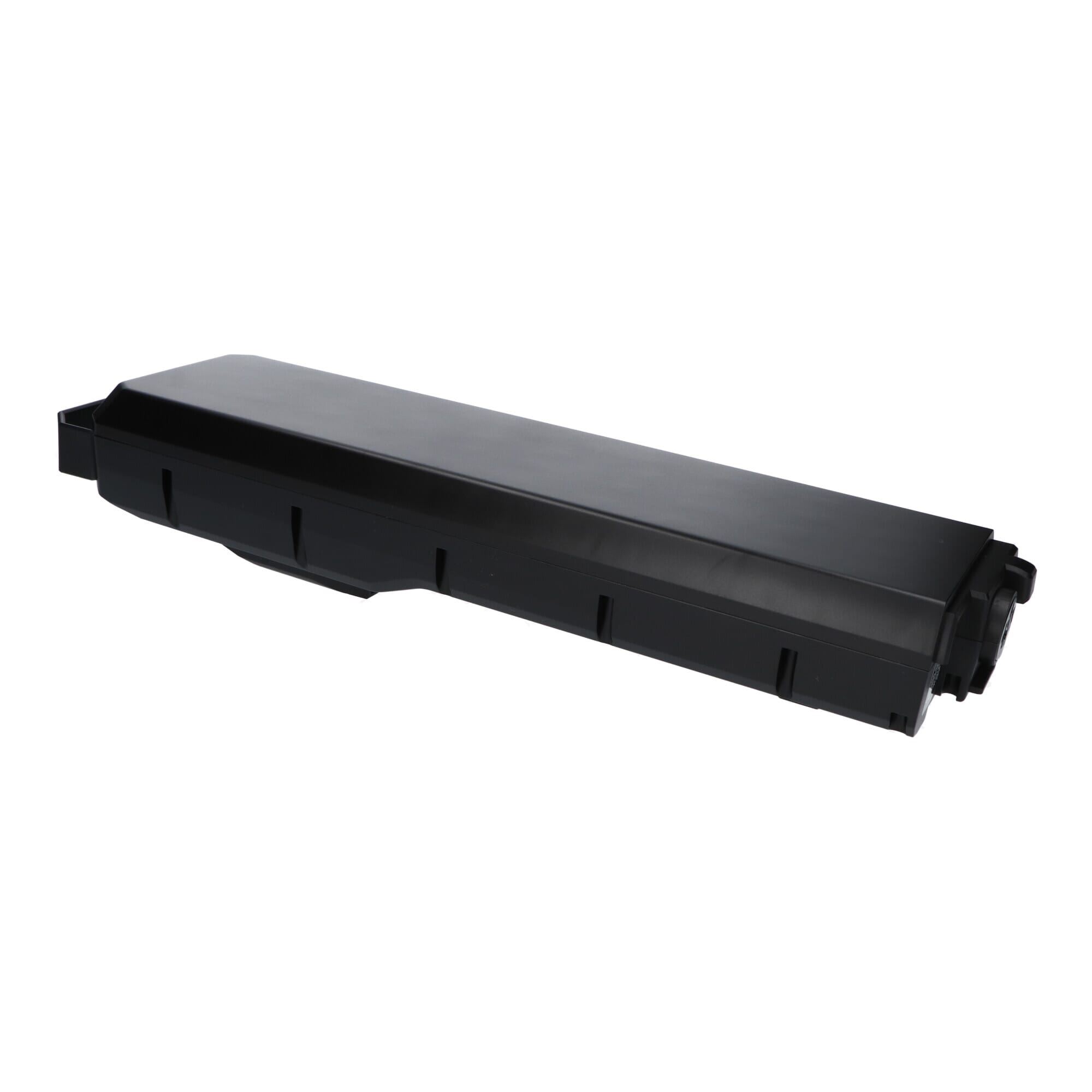

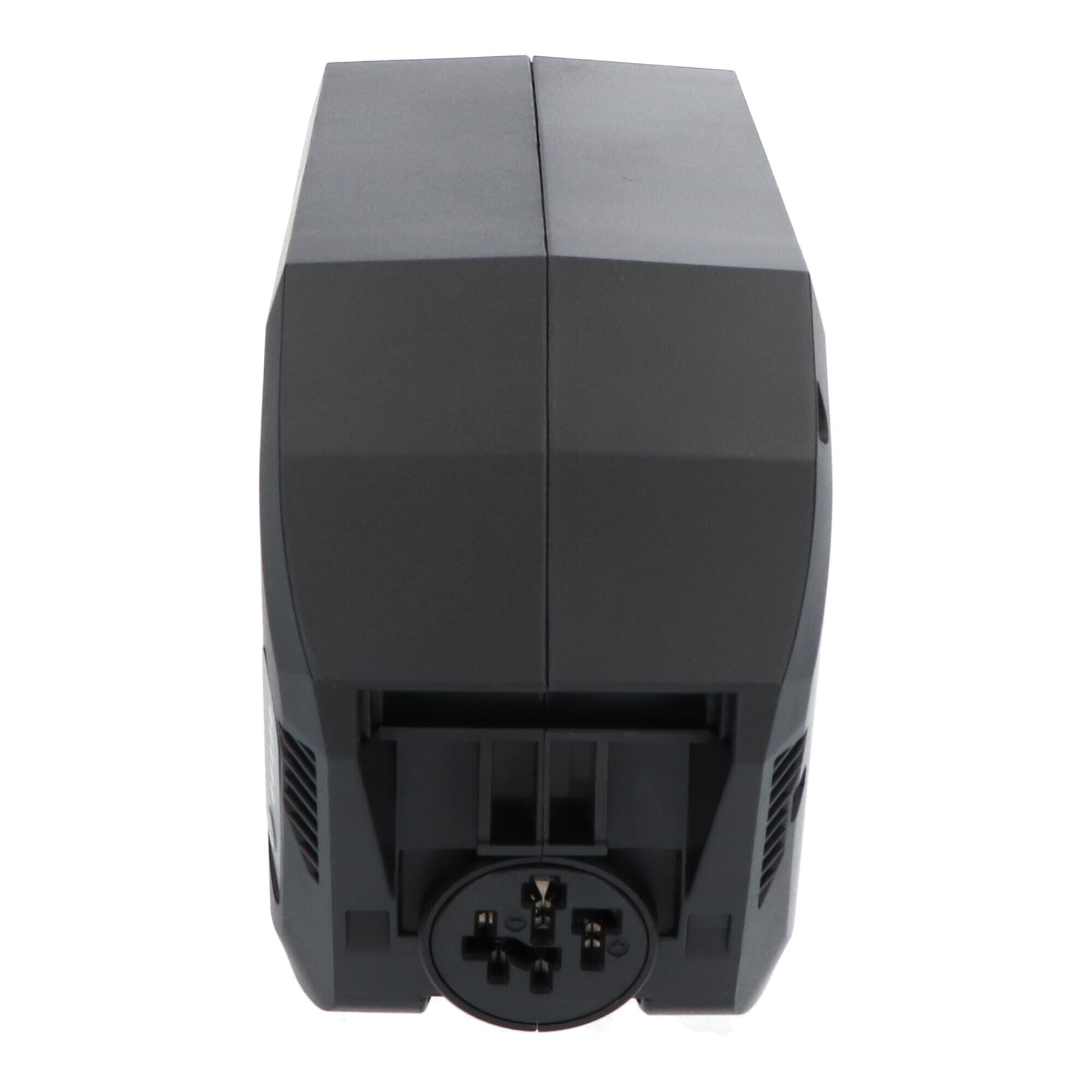

Compatibel with Bosch Active (Plus) / Performance (CX) drivetrain system

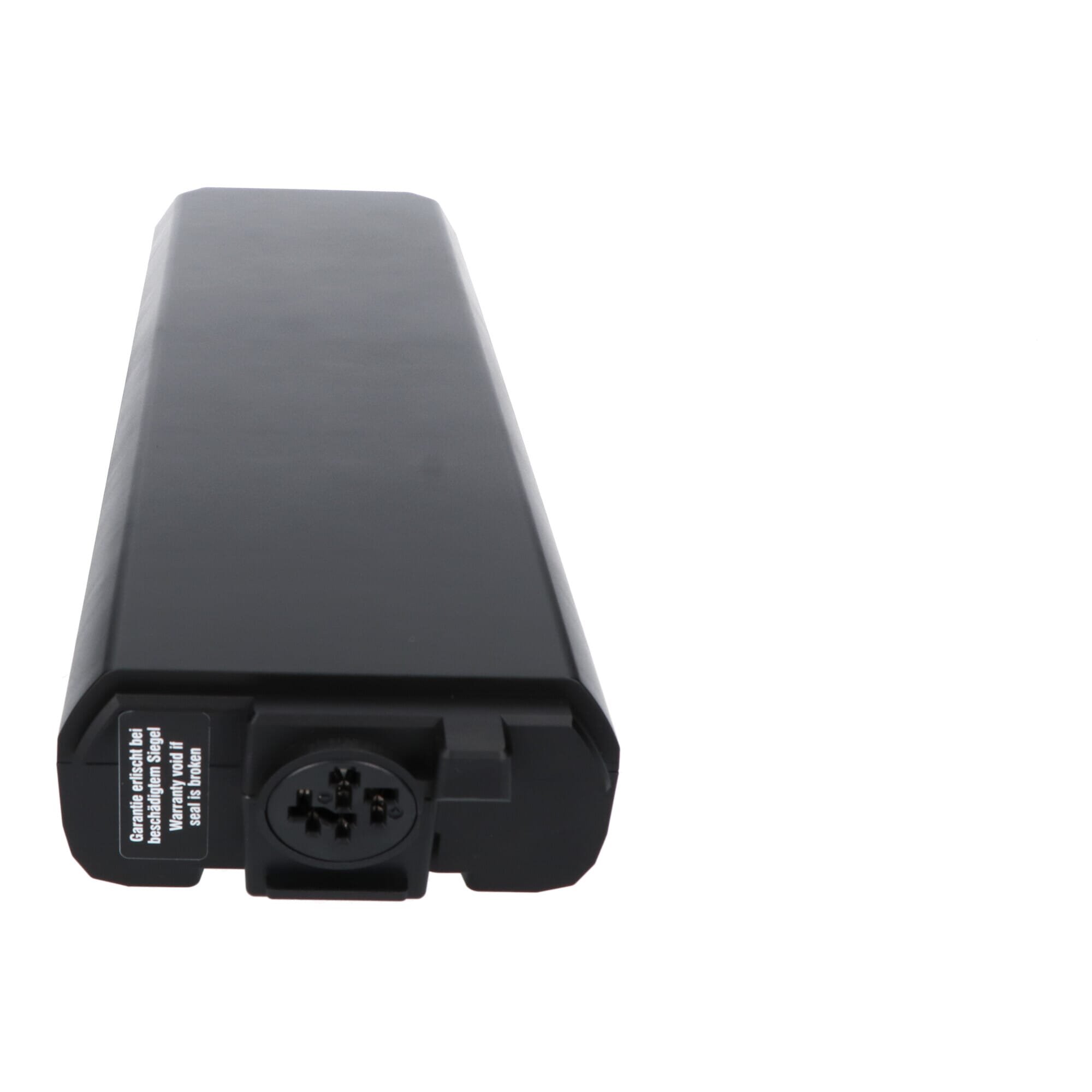

The 36 V Bosch drivetrain system Active (Plus) Line and Performance (CX) Line is available with 540 Wh or 720 Wh. This makes the batteries from E-Bike Vision the perfect companion for long day trips, without the need to carry the charger or a second, heavy battery.

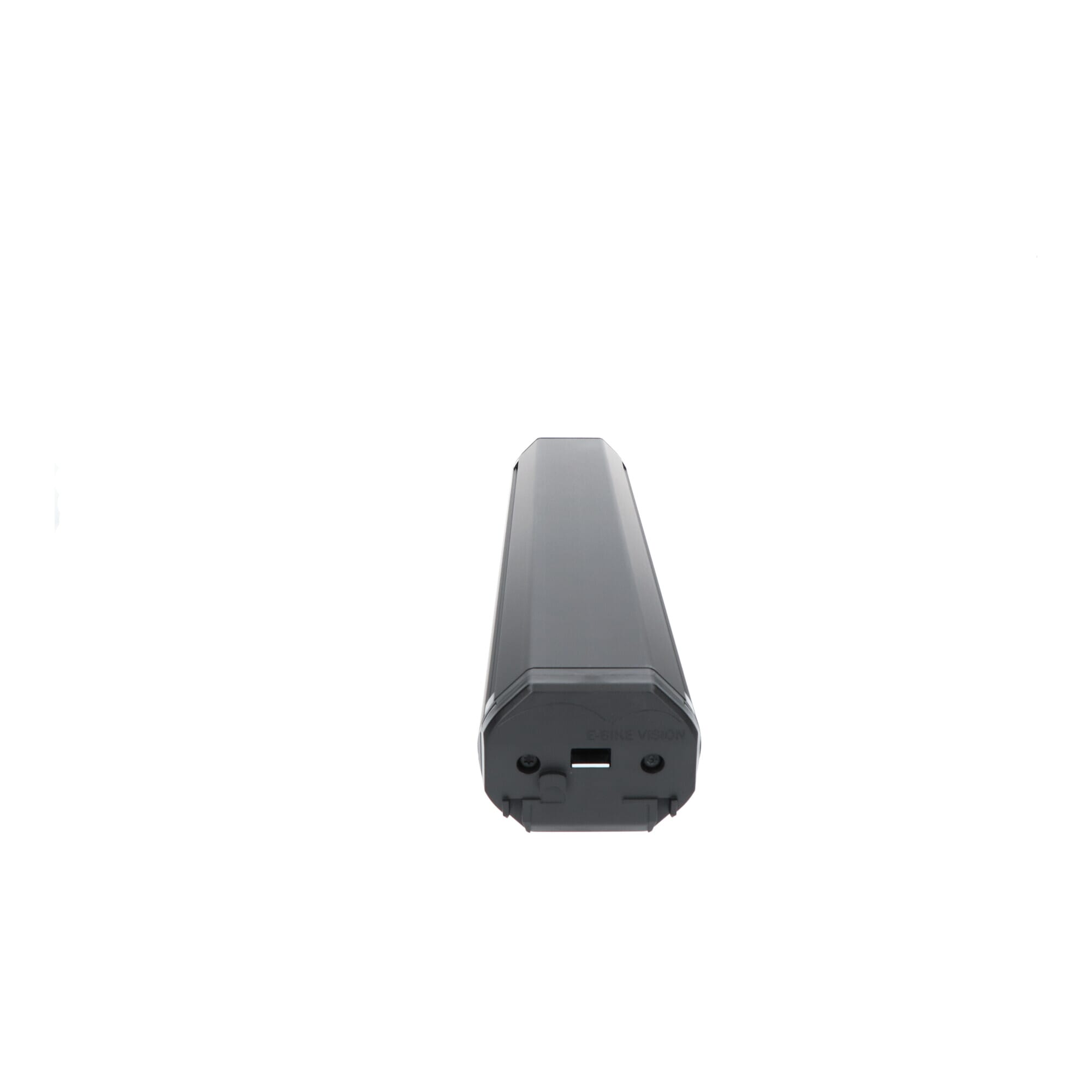

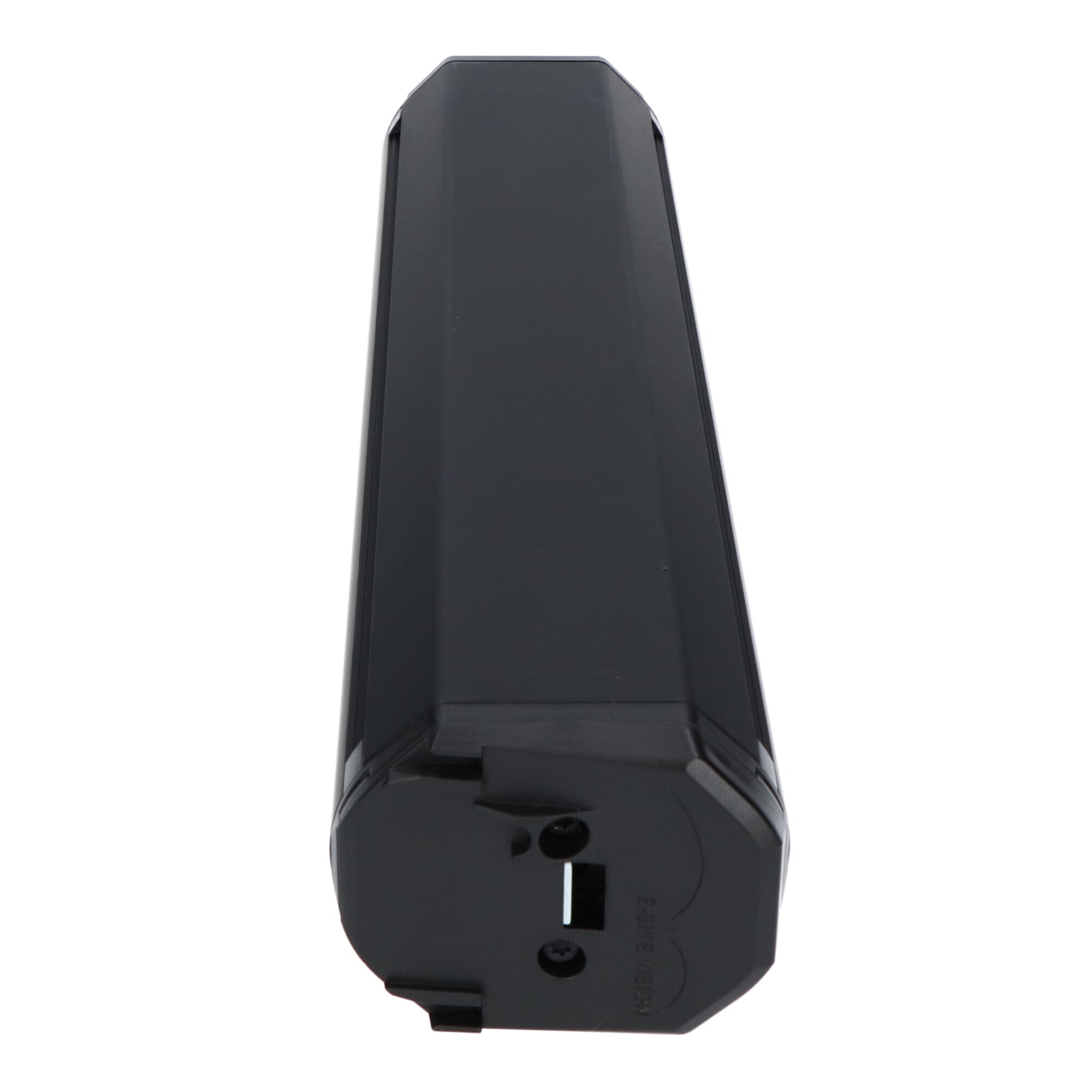

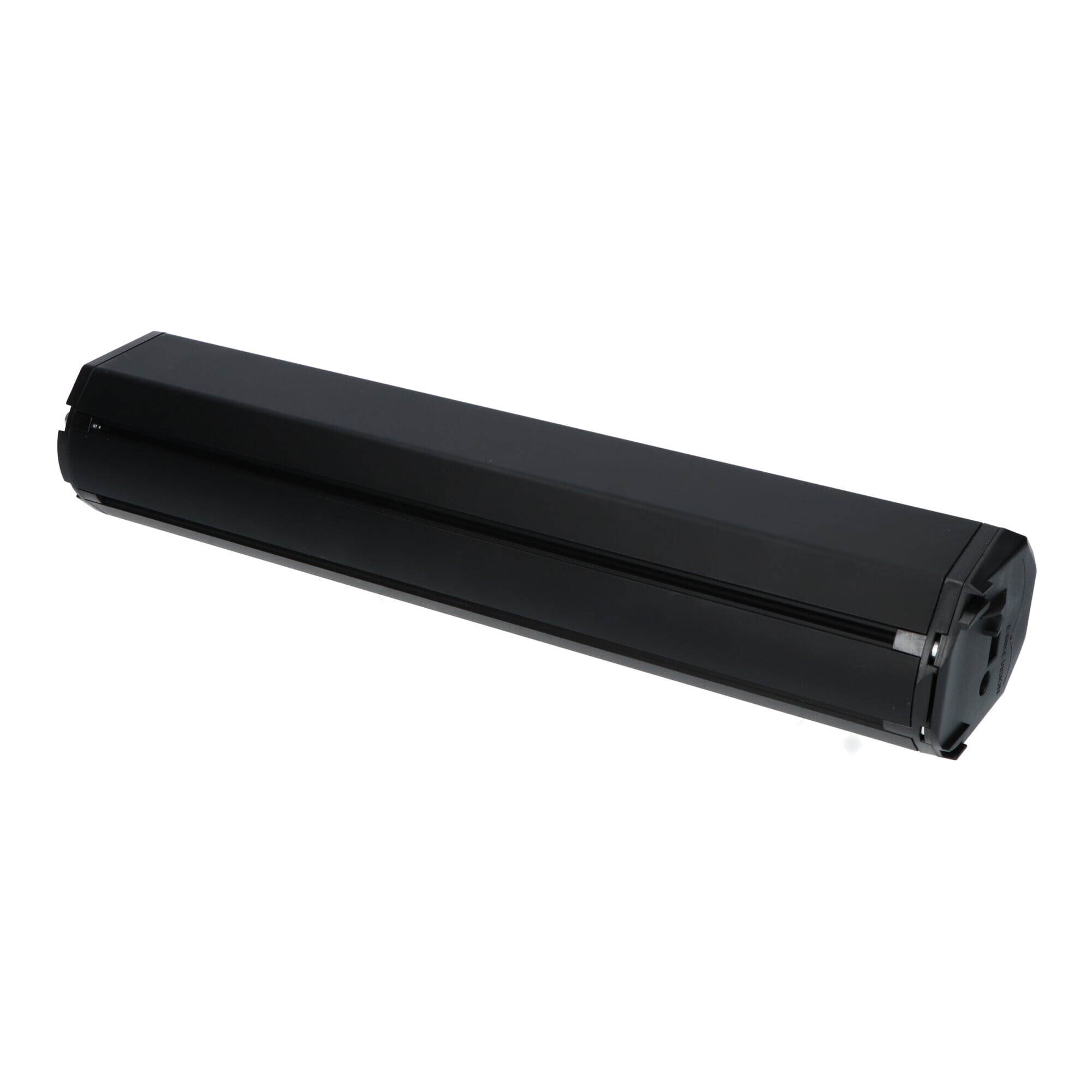

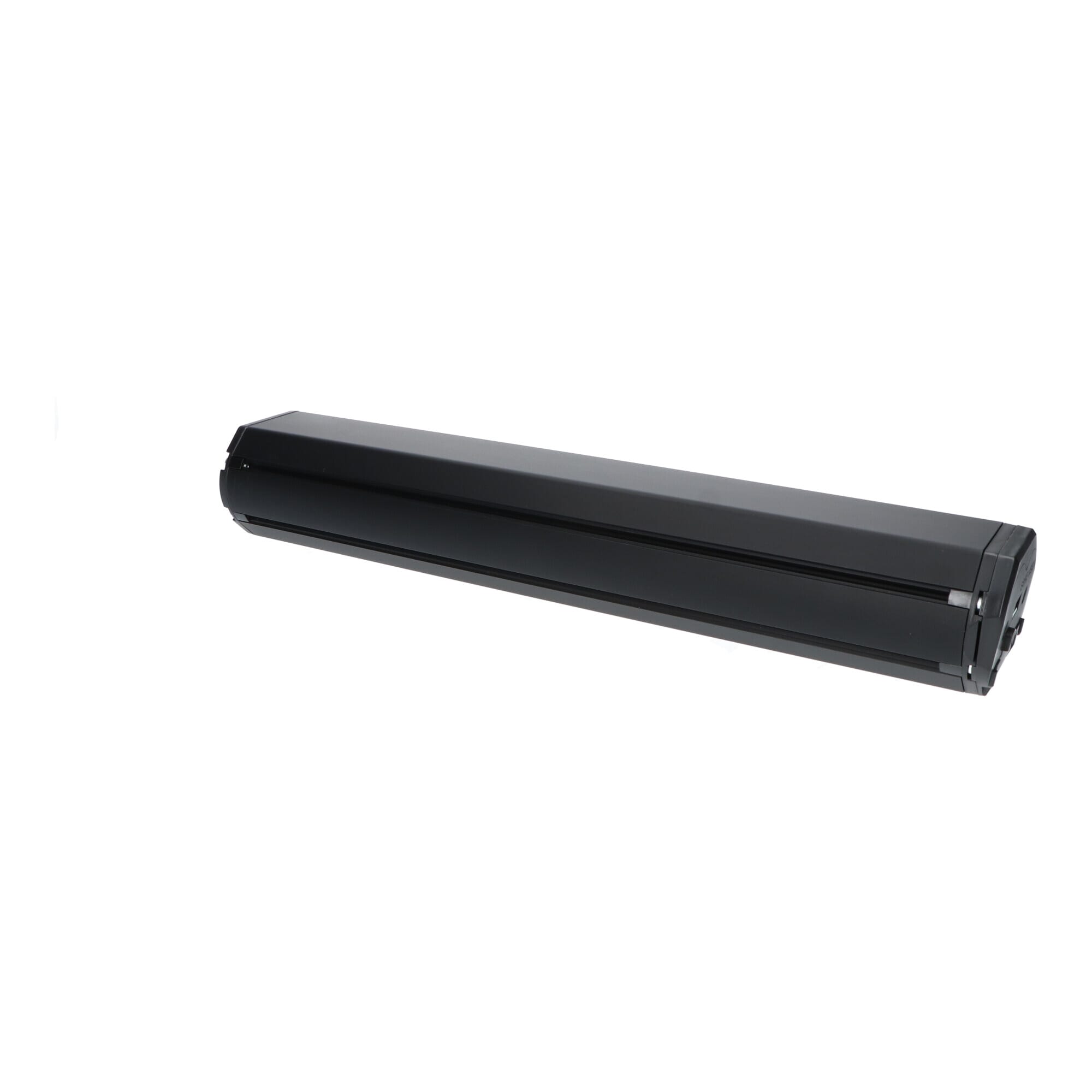

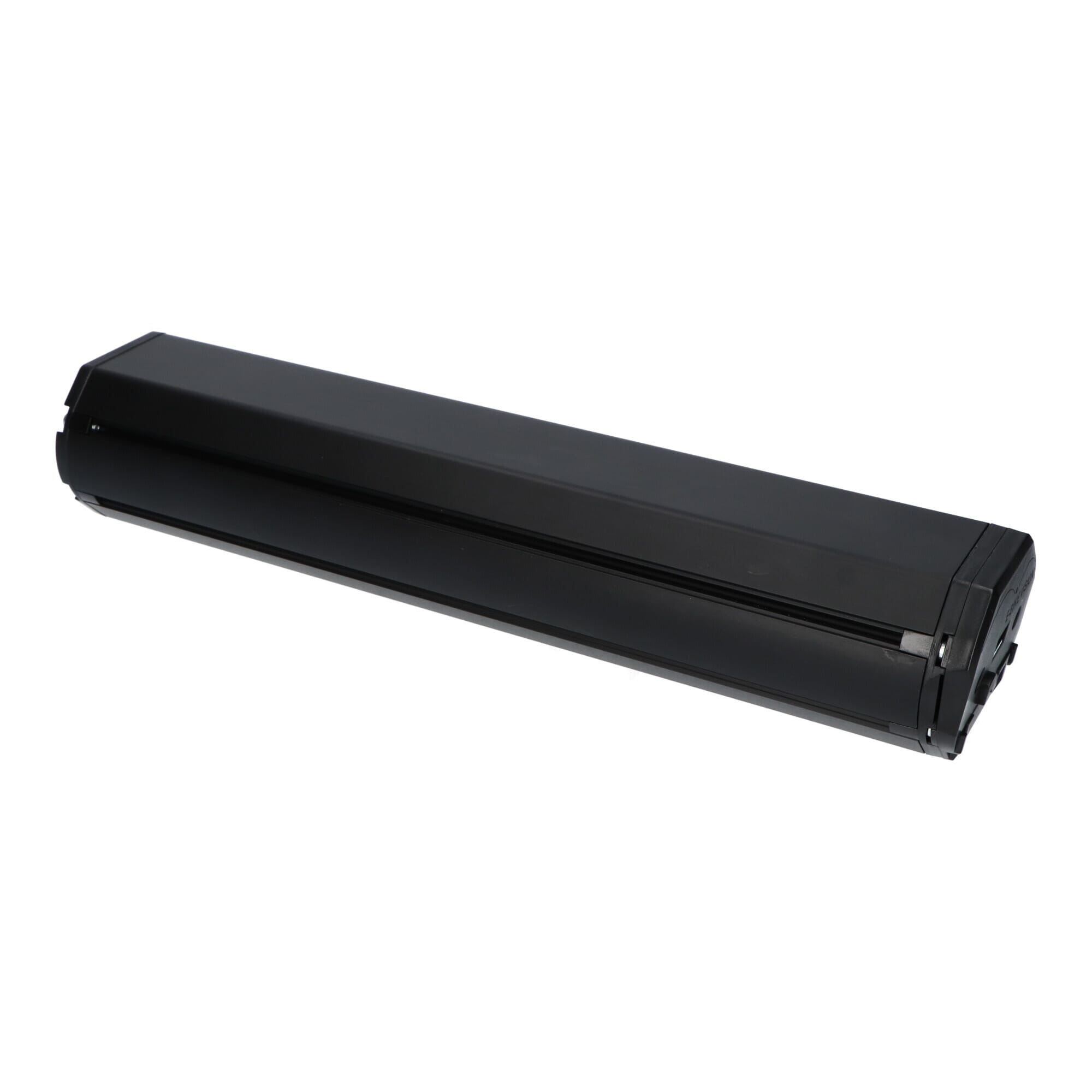

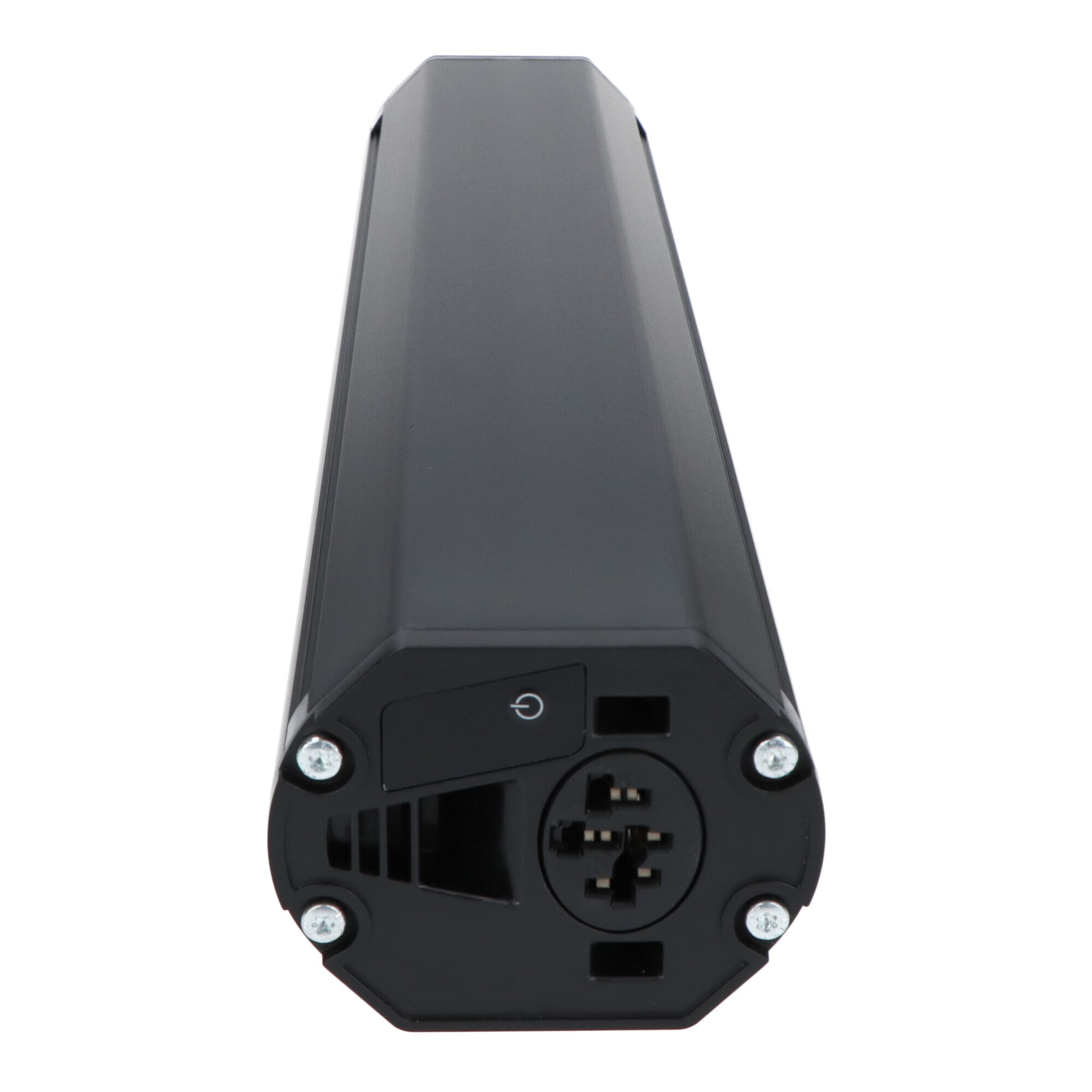

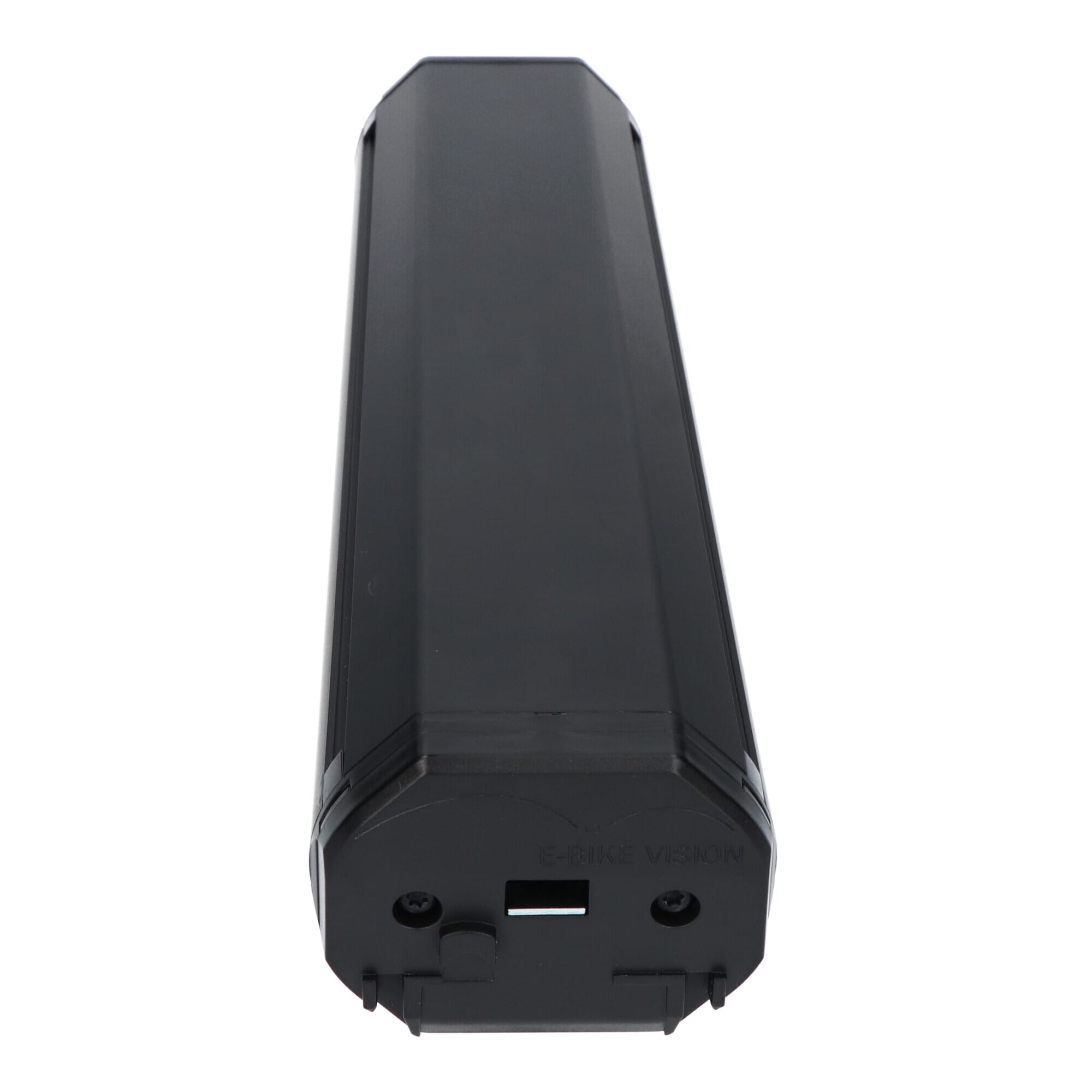

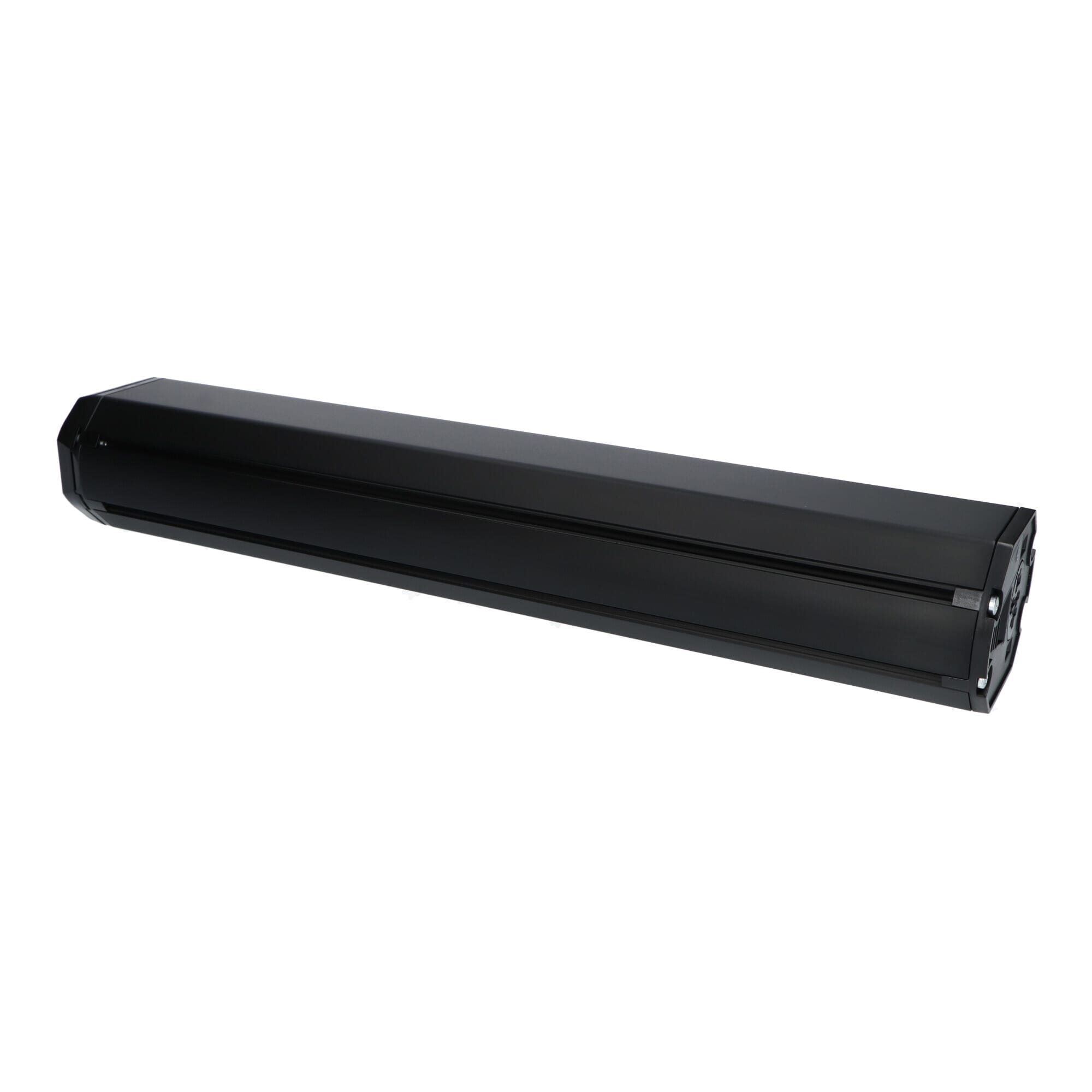

Compatible with Bosch Active (Plus) / Performance (CX) drivetrain system (In Frame)

The E-Bike Vision In Frame battery, compatible with Bosch, is mounted within the bike frame and is available in both horizontal and vertical versions. With a capacity of 511 Wh or 630 Wh, this battery is ideal for long day trips without the need for a charger or extra battery.

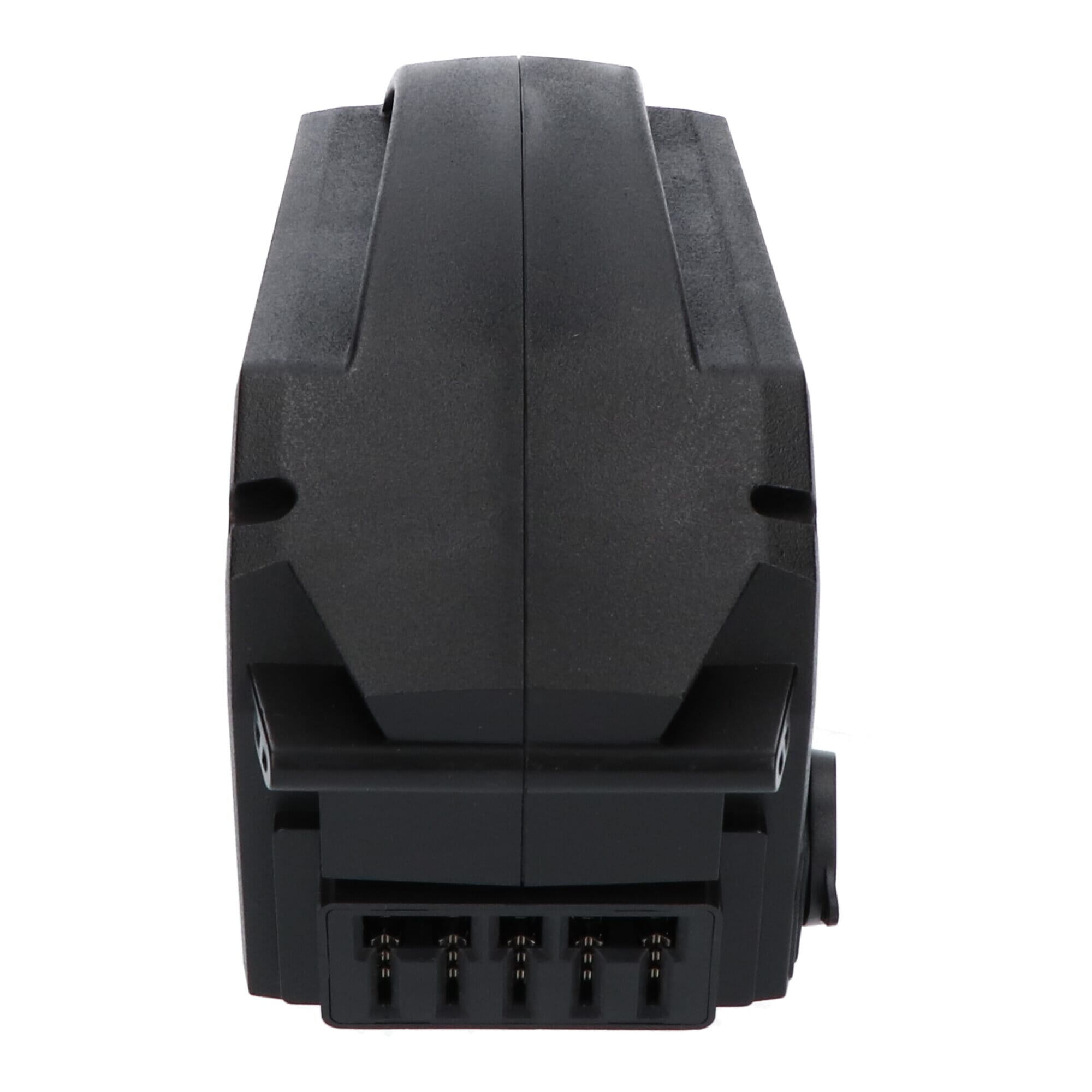

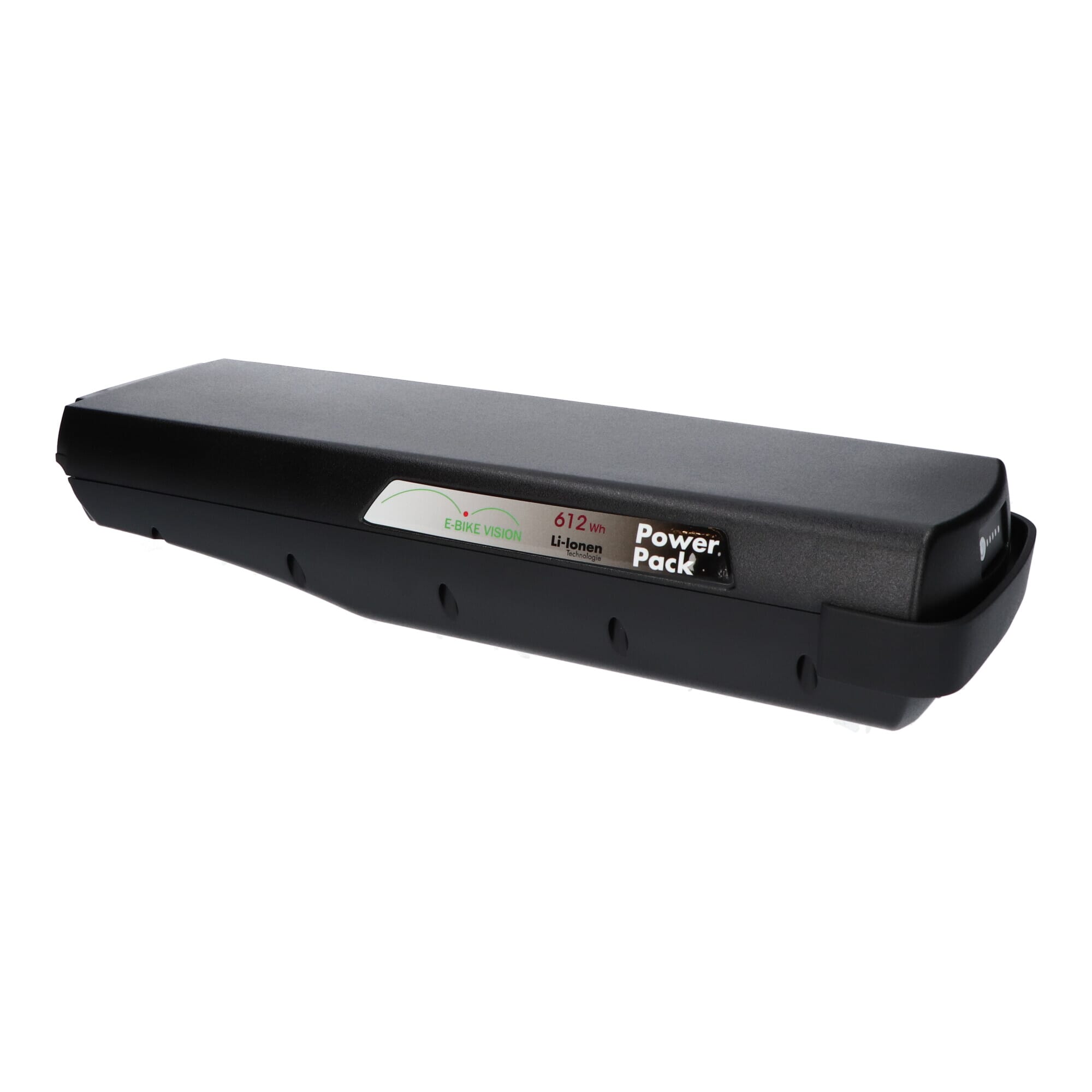

Compatible with Bosch Classic drive system.

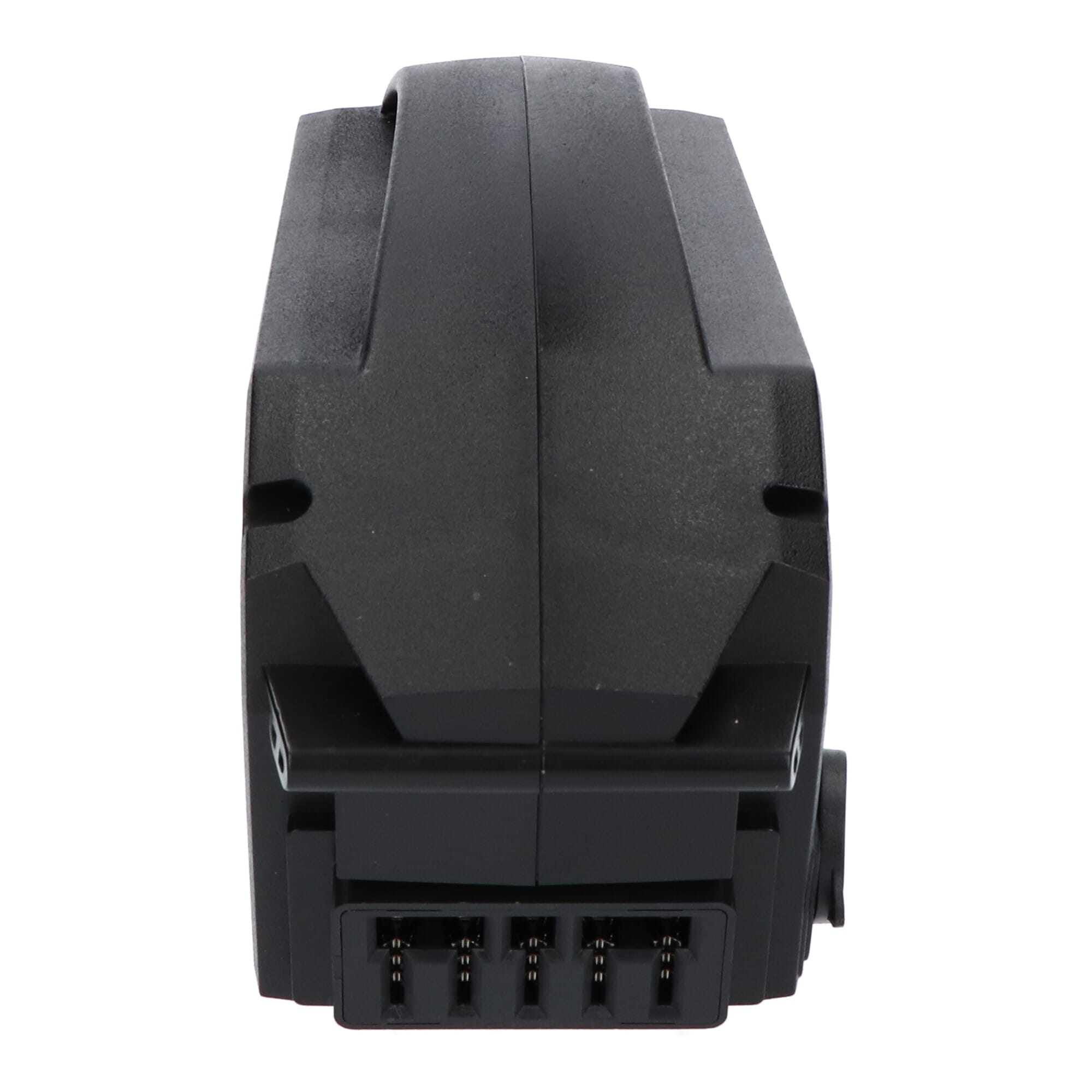

The 612 Wh battery from E-Bike Vision, compatible with Bosch, is ideal for short trips and long day rides. Thanks to the additional charging port for the E-Bike Vision fast charger (6 A, 36 V), charging is possible in 2 to 2.5 hours, depending on the capacity.

More information

Bosch Alternatief

Panasonic

Compatible with Panasonic 26 V drive system

The 20 Ah battery from E-Bike Vision, compatible with Panasonic, is ideal for bike trips. With the additional charging port for the E-Bike Vision fast charger (5 A, 26 V), charging is possible in 3 to 4.5 hours, depending on the capacity.

More information

Compatible with Panasonic 36 V Next Generation drive system.

The 19 Ah battery from E-Bike Vision, compatible with Panasonic, is ideal for both short trips and longer day tours. With its powerful capacity, it provides reliable support, ensuring worry-free cycling adventures.

More information

Compatible with Panasonic 36 V Deluxe drive system

For a short trip or a long day ride, the 612 Wh battery from E-Bike Vision, compatible with Panasonic, is a perfect choice. With the additional charging port for E-Bike Vision chargers (6 A or 4 A), the battery can be charged in 2 to 5 hours, depending on the capacity.

More information

Why should an additional charger from E-Bike Vision be purchased?

During the development of the E-Bike Vision Battery compatible with Panasonic 36V, E-Bike Vision unfortunately had to determine that compatibility with the original charger could not be achieved. To charge the E-Bike Vision Battery, one of the 36V chargers with 4A or 6A is required.

What should be considered when installing the E-Bike Vision battery?

Due to the additional charging contact, it may be necessary to slide the E-Bike Vision battery in at a steeper angle.

Yamaha

Compatible with Yamaha (PW / ST / TE / CE) drive system.

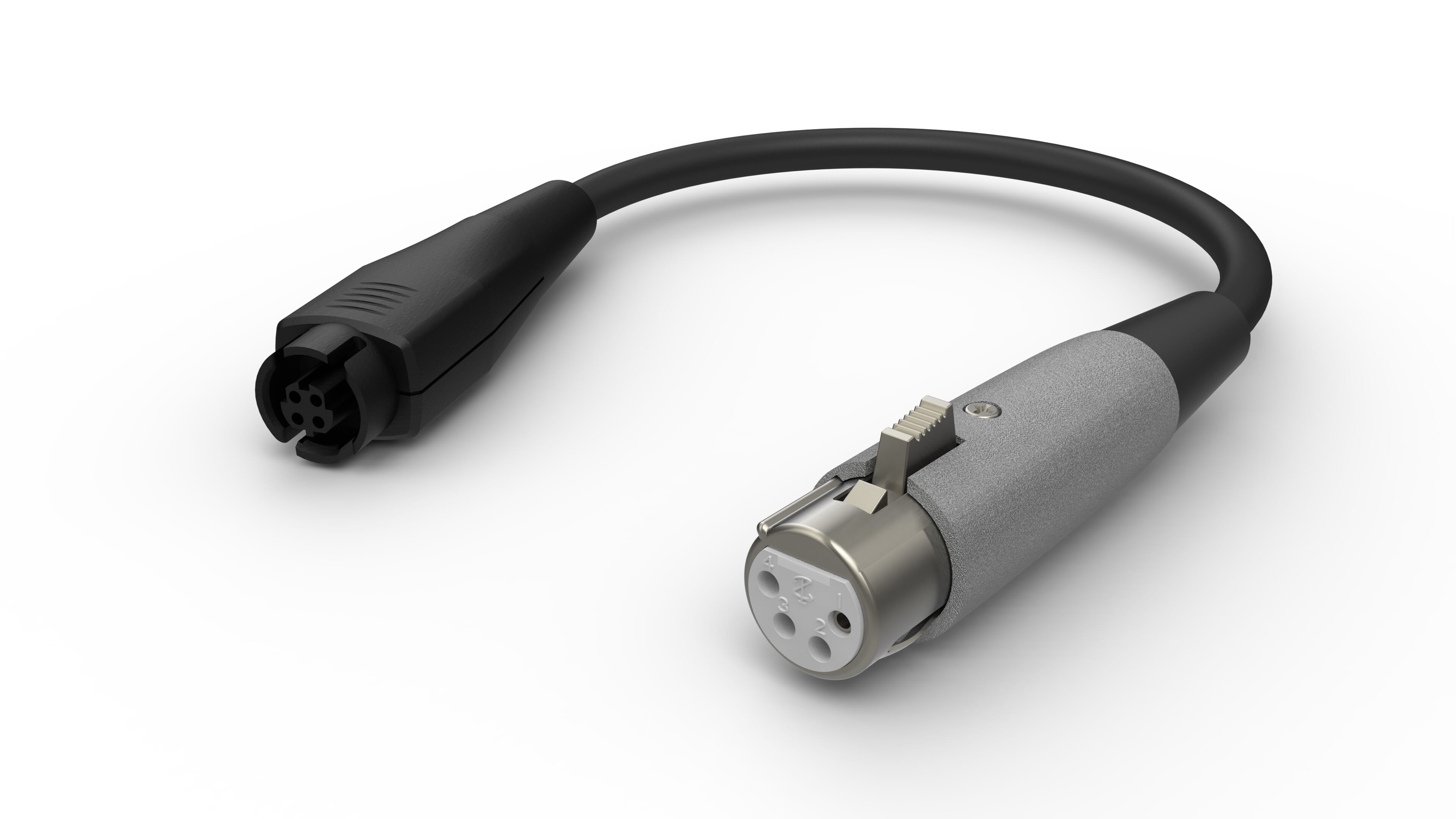

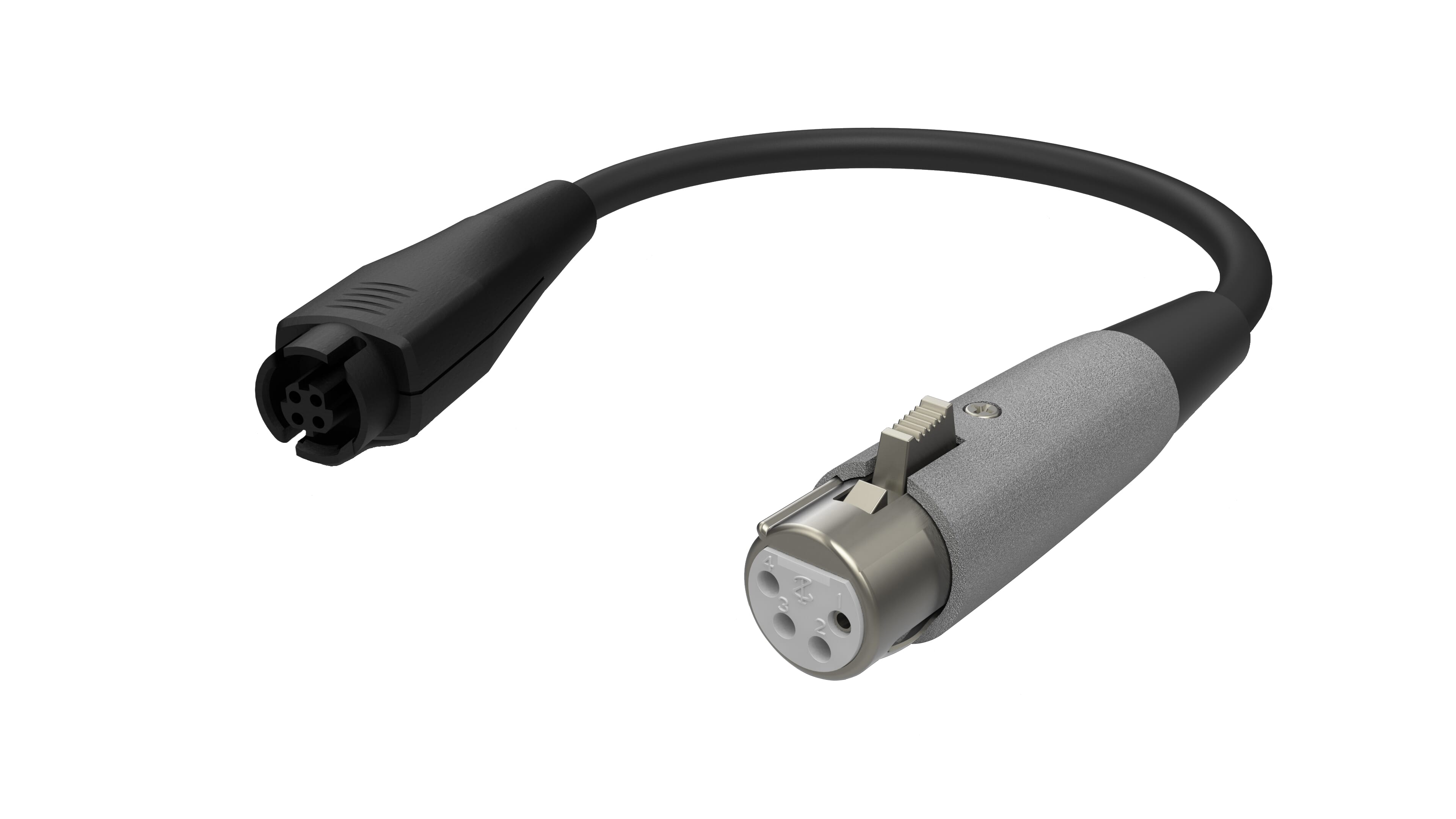

E-Bike Vision batteries are compatible with the Yamaha drive system PW, PW-X, PW-X2, PW-SE, PW-ST, PW-TE, and CE, as well as the corresponding Yamaha charger. These powerful e-bike batteries can be seamlessly integrated into the familiar system, allowing for even more elevation gains.

more information

Gazelle

Compatible with Gazelle Innergy drive system.

E-Bike Vision batteries are compatible with the 36 V Gazelle drive system and the corresponding Gazelle charger. The powerful e-bike batteries can be seamlessly integrated into the trusted system, providing a higher range for even longer cycling enjoyment.

More information

Waarom werkt het E-Bike Vision Batterij niet met het Gazelle-aandrijfsysteem?

As is common with Gazelle drive systems, batteries of the following types must be "paired" with the drive system. This procedure can only be carried out via the Gazelle dealer software. For this, contact can be made with the bicycle retailer.

  • INNERGY PURE
  • INNERGY XT
  • INNERGY ORANGE







The E-Bike Vision battery cannot be charged or discharged. What can be done?

The E-Bike Vision battery, compatible with the Gazelle Innergy drive system, is automatically set to deep sleep mode after one hour of inactivity to reduce self-discharge. To use the E-Bike Vision battery again, it needs to be activated. This can be easily done by pressing the capacity button once briefly. The individual LEDs of the capacity indicator will then light up completely once, indicating that the BMS of the E-Bike Vision battery has been started and activated. When the capacity button is pressed again, the capacity will be displayed as usual. After activation, the E-Bike Vision battery can be recharged.

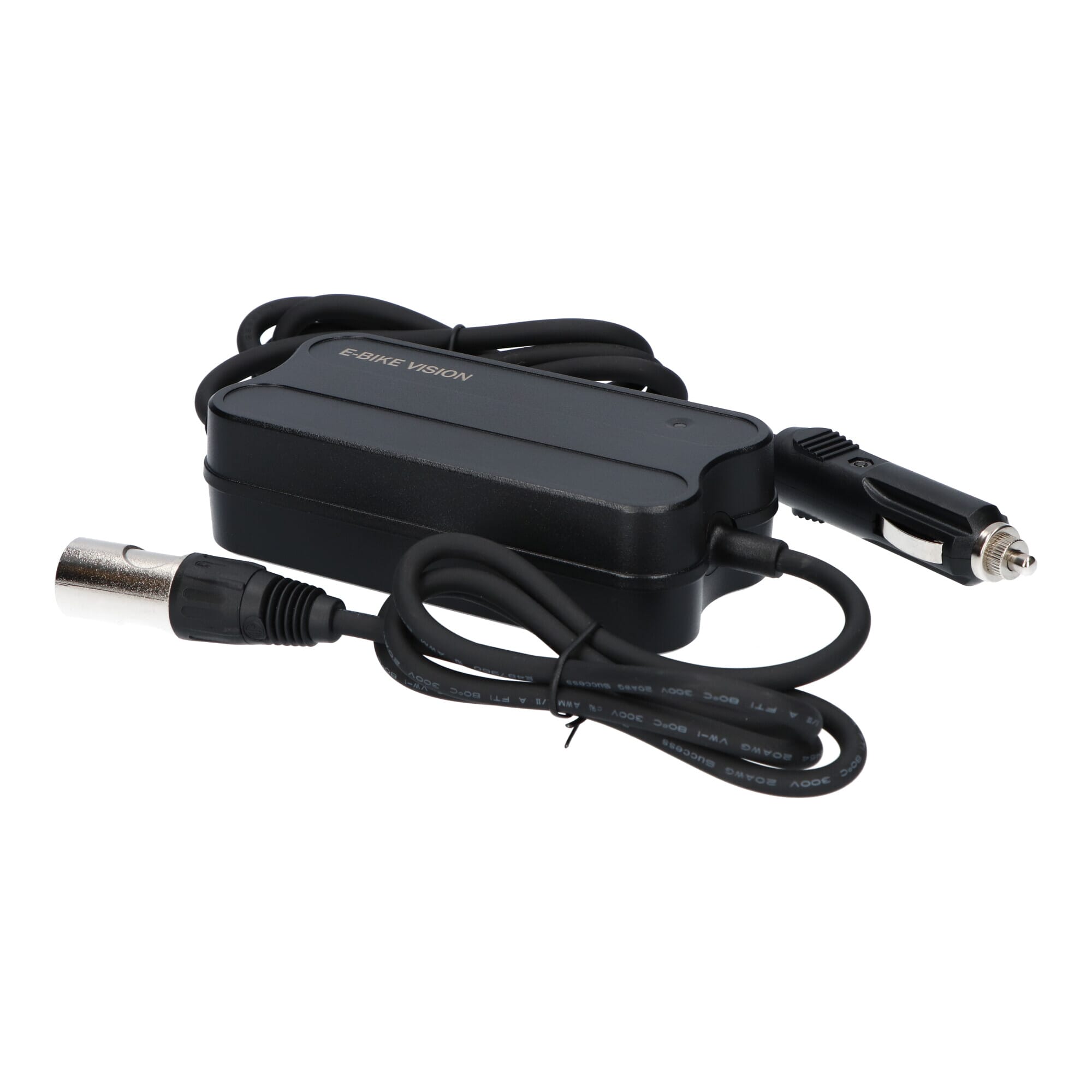

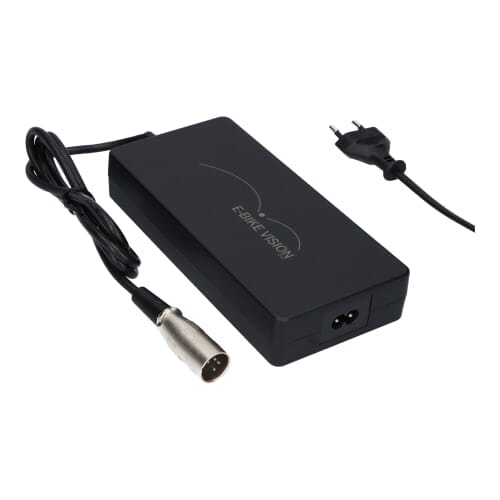

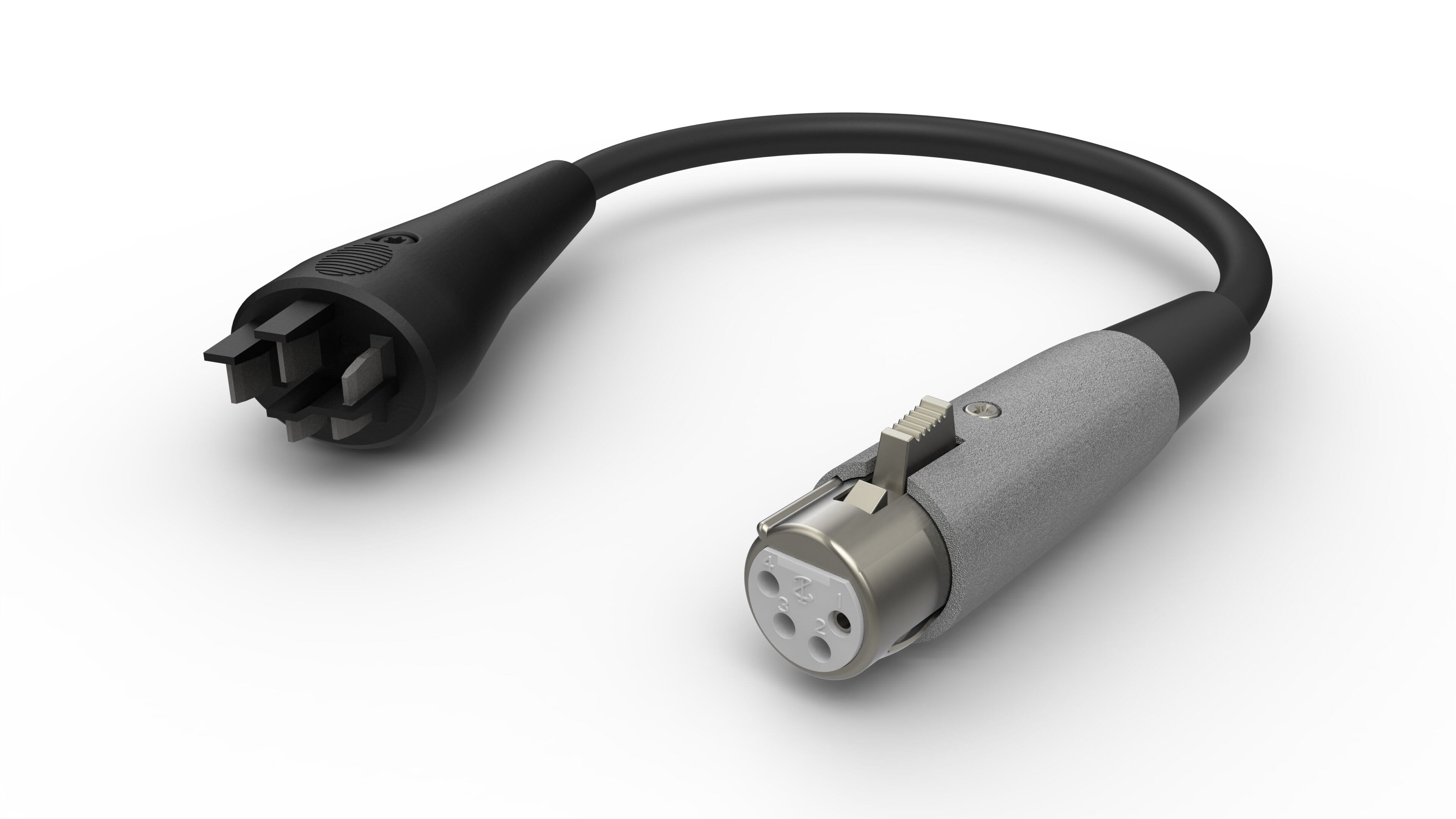

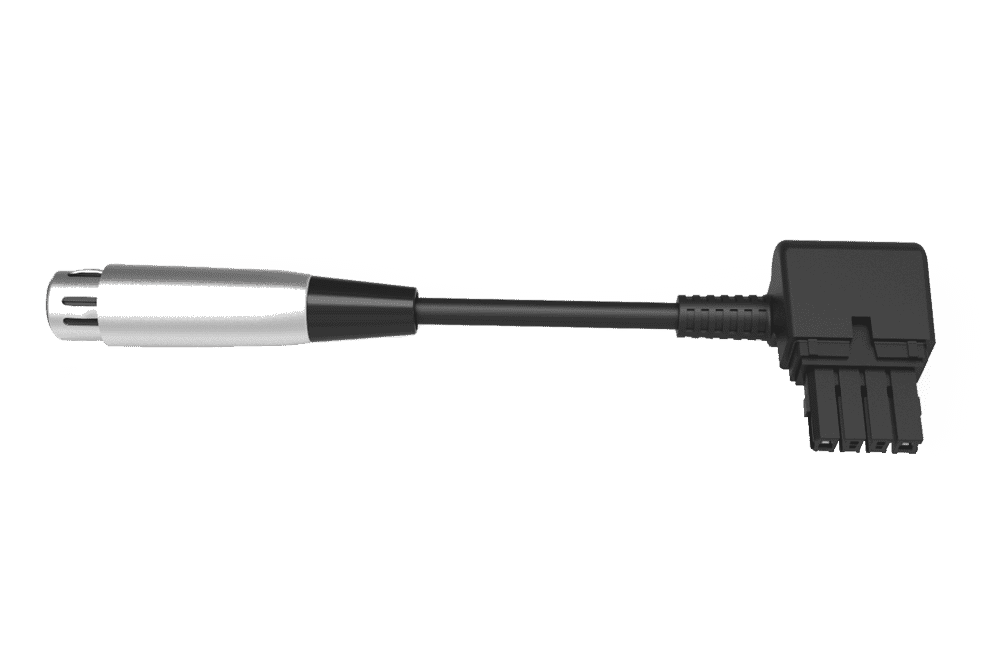

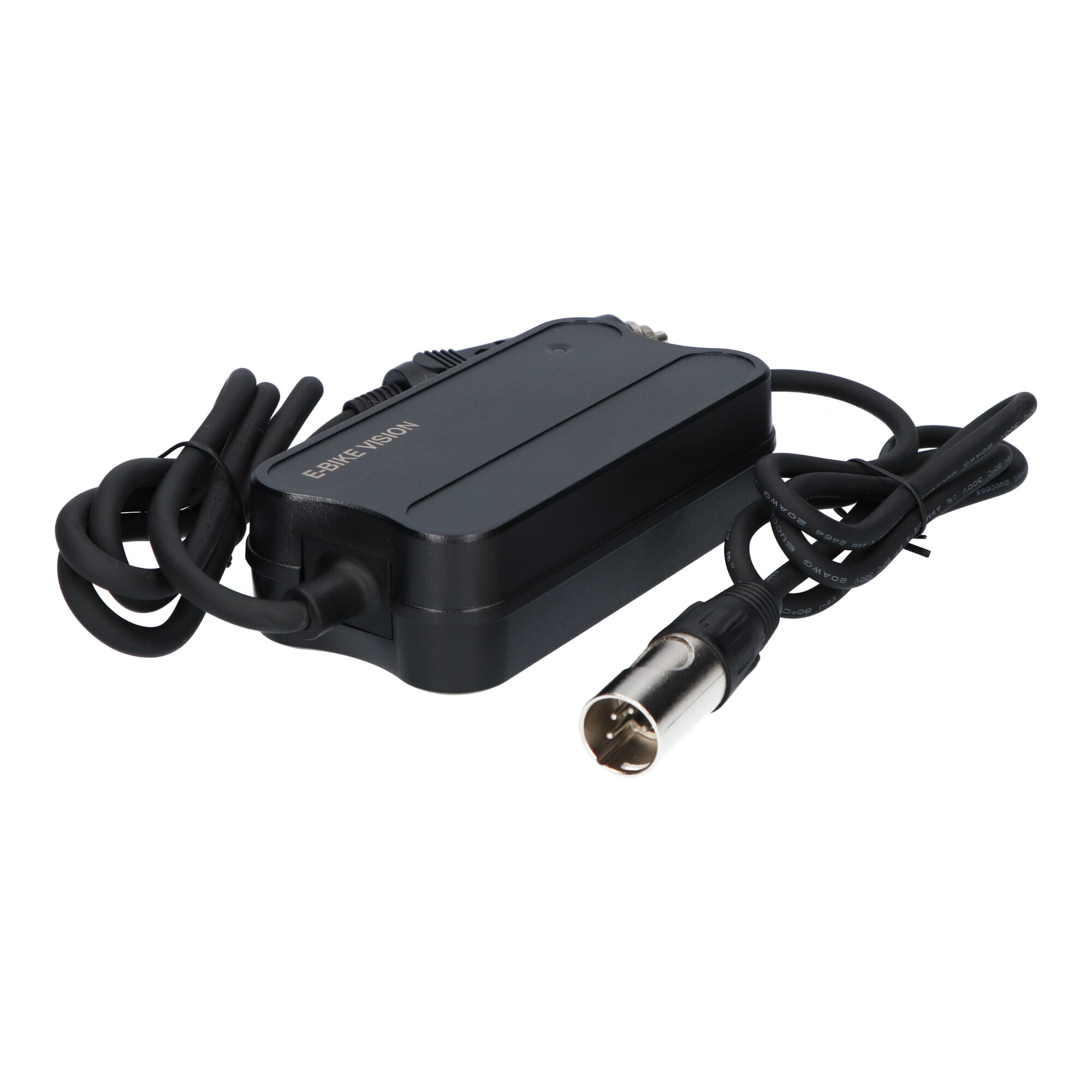

Accu chargers

E-bike Vision AV Toolbox app

With the AV-Toolbox mobile app, all necessary data of the battery can be viewed. The app is used to analyze batteries and provides information about their condition and usage. It's easy to read battery data and even perform a software update.

AV-Toolbox is available for a limited number of batteries. The following batteries from the range can be connected to the app:

E-Bike Vision Batterij, compatibel met Bosch* Active (Plus) / Performance (CX)
E-Bike Vision Batterij Lite, compatibel met Bosch* Active (Plus) / Performance (CX)
E-Bike Vision Batterij InFrame,compatibel met osch* Active (Plus) / Performance (CX)
E-Bike Vision Batterij, compatibel met Yamaha* (PW / ST / TE / CE) (Batterijen met groene LED)

E-Bike Vision Batterij, compatibel met Panasonic* 36 V Next Generation









AV-Toolbox

AV-Toolbox app

My battery is not showing up, what should I do?

Tap the magnifying glass icon at the top right in the app, then turn the battery on using the control button. If necessary, connect the battery to the charger to keep it permanently powered on (if the charge level is less than 100%).

For E-Bike Vision batteries compatible with Bosch* drive systems from 2019-2020, it may be necessary to update the Bluetooth chip. If the battery is not showing up in the app, follow the instructions to perform the update.

For any questions, you can contact the service team.

How to choose the right battery?

If there are multiple batteries, simply turn on or connect the desired battery to the charger.

The battery is displayed by default as 'Battery_GOBT'. In the overview, you can tap on the device to change its name. With a unique name, the battery can be quickly found during the next use of the app.

Why are there so few charging cycles displayed, even though the battery has been connected to the charger many more times?

This is because the app only displays full cycles. A full cycle means the battery is fully discharged and then fully charged (1 full cycle = 100% of the battery energy charged and discharged). Partial cycles are added up.

For example, if an e-bike battery is charged from 20% to 70%, then discharged to 40%, and finally charged to 90%, this corresponds to three partial cycles:

  • Partial cycle 1 (20% – 70% charged) = (70% - 20%) / 2 = 0.25 full cycles
  • Partial cycle 2 (70% – 40% discharged) = (70% - 40%) / 2 = 0.15 full cycles
  • Partial cycle 3 (40% – 90% charged) = (90% - 40%) / 2 = 0.25 full cycles

Total number of cycles: 0.65 full cycles.

How can the battery be updated?

After the battery is connected, tap "Update." The current firmware status will be displayed, along with the availability of a new update.

The update was canceled, what should be done now?

Restart the update

E-bike Vision Test Tower

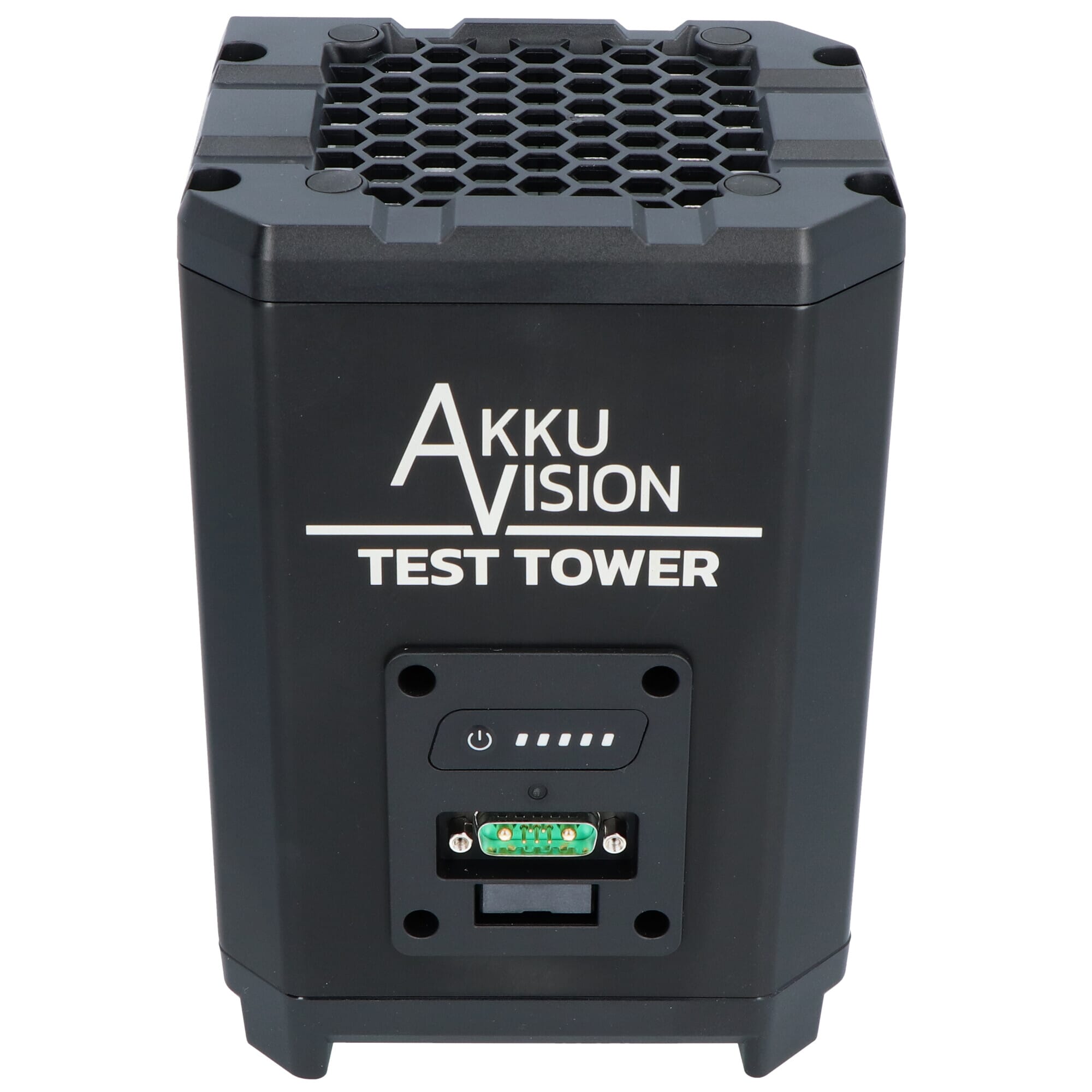

The Test Towers from E-Bike Vision are advanced testing devices used for checking and maintaining e-bike batteries. They are mainly used by bike shops, repair centers, and service points to test batteries from various brands and models.

Test Tower

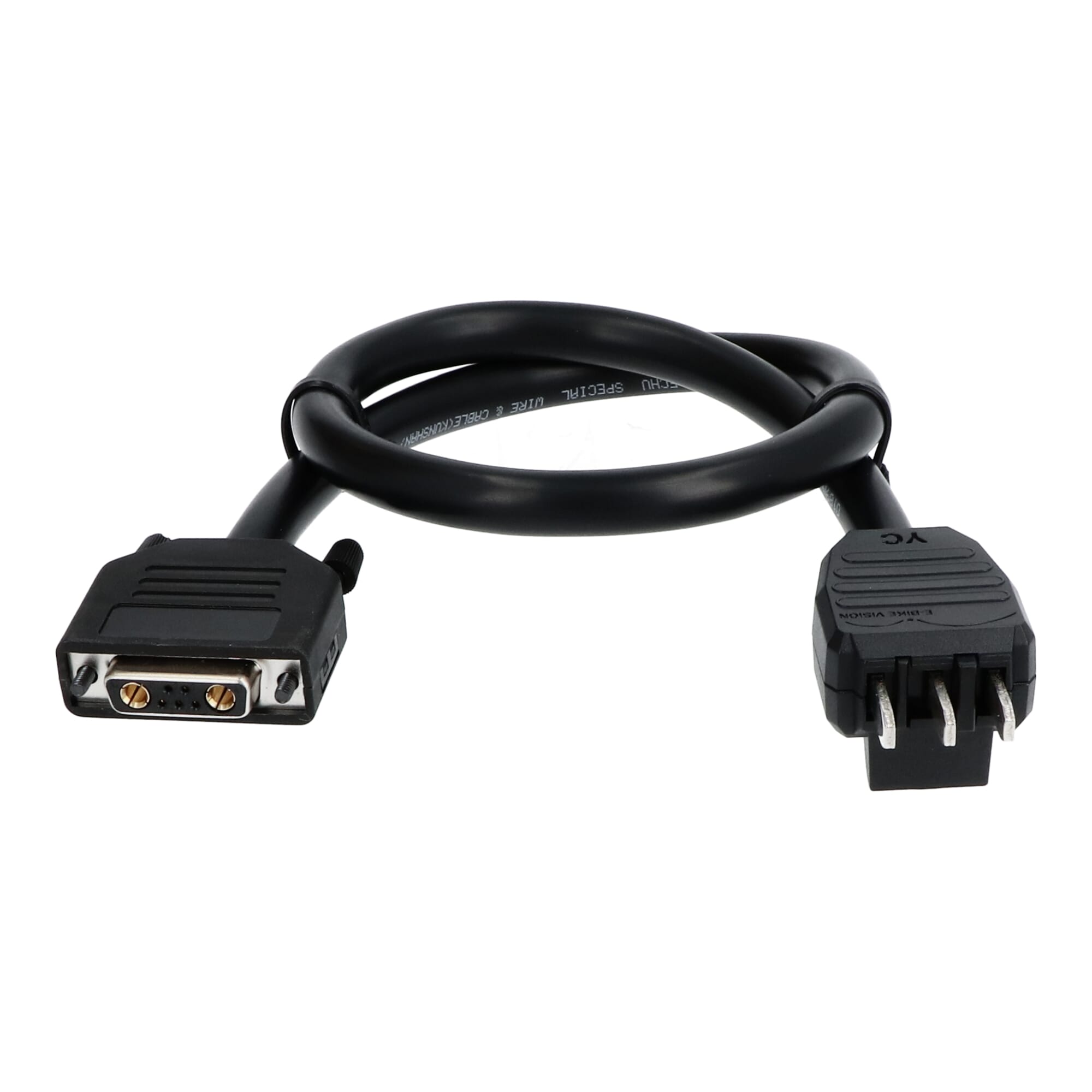

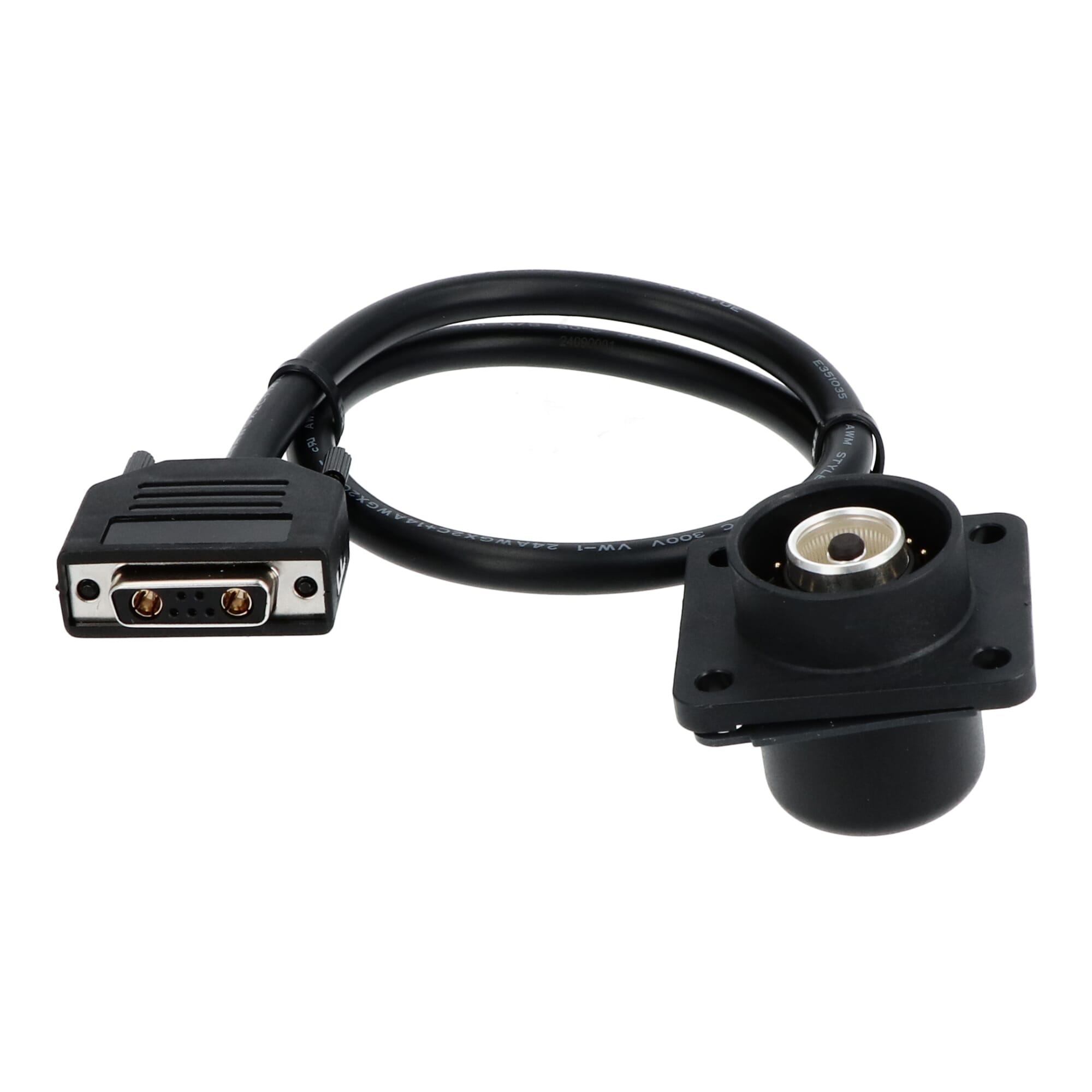

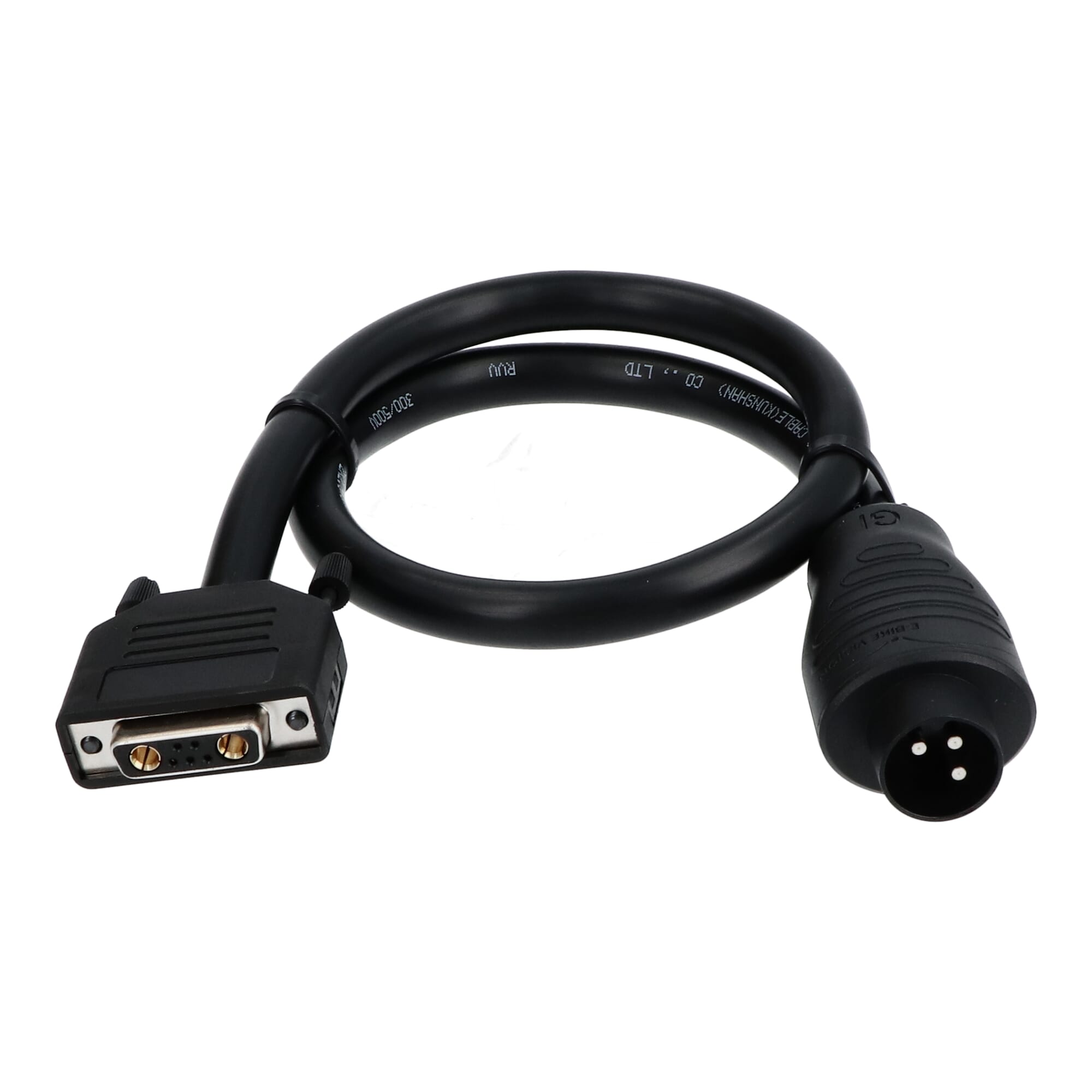

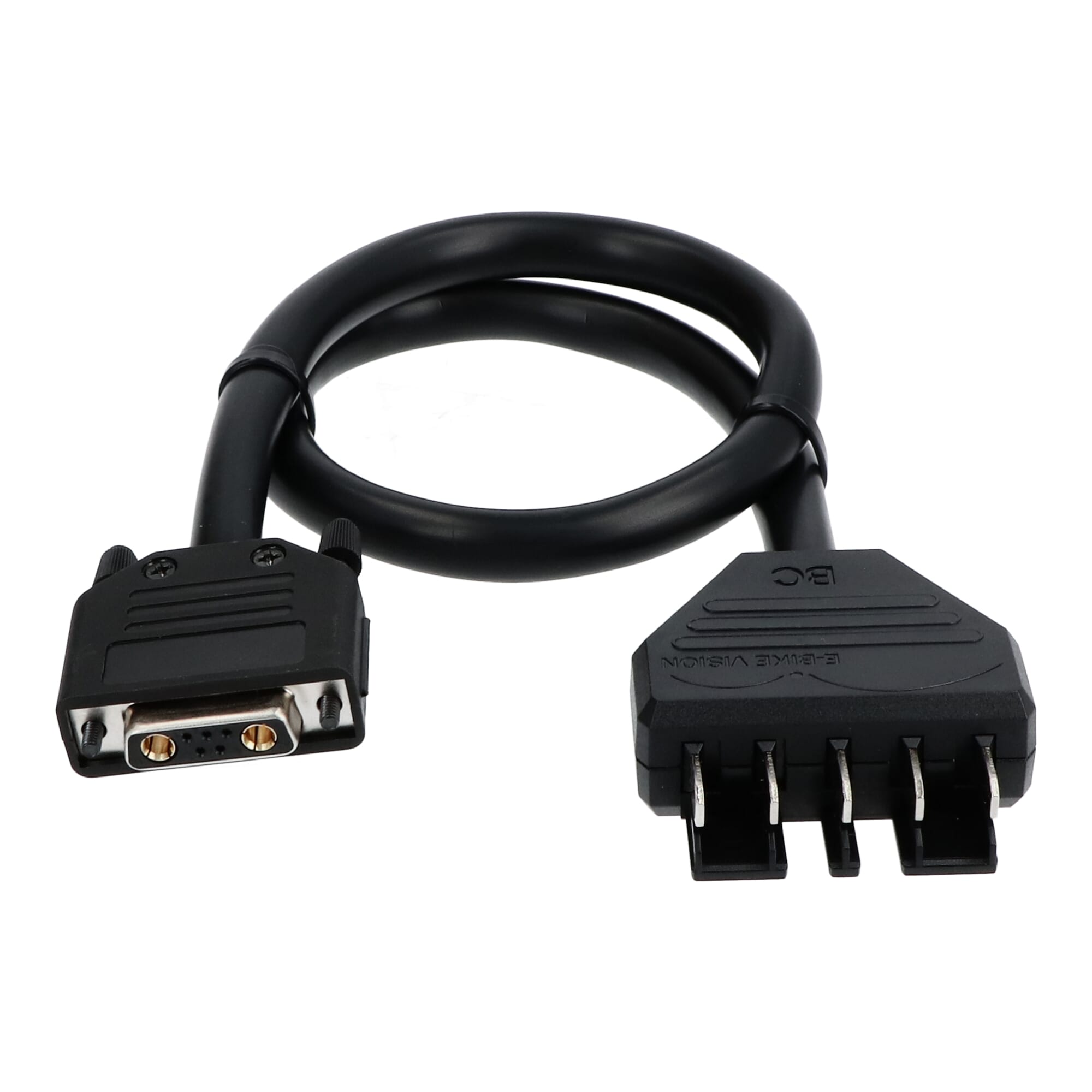

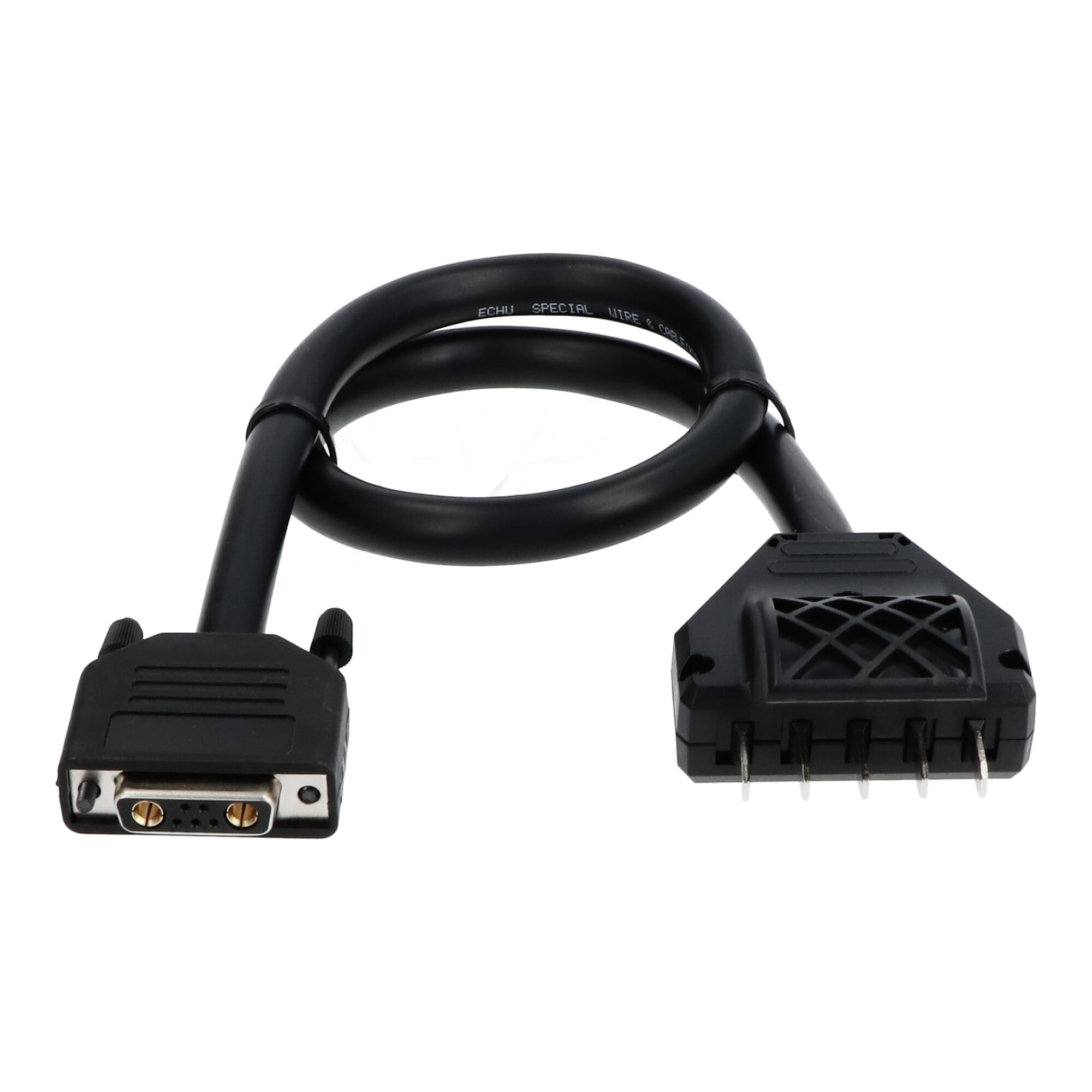

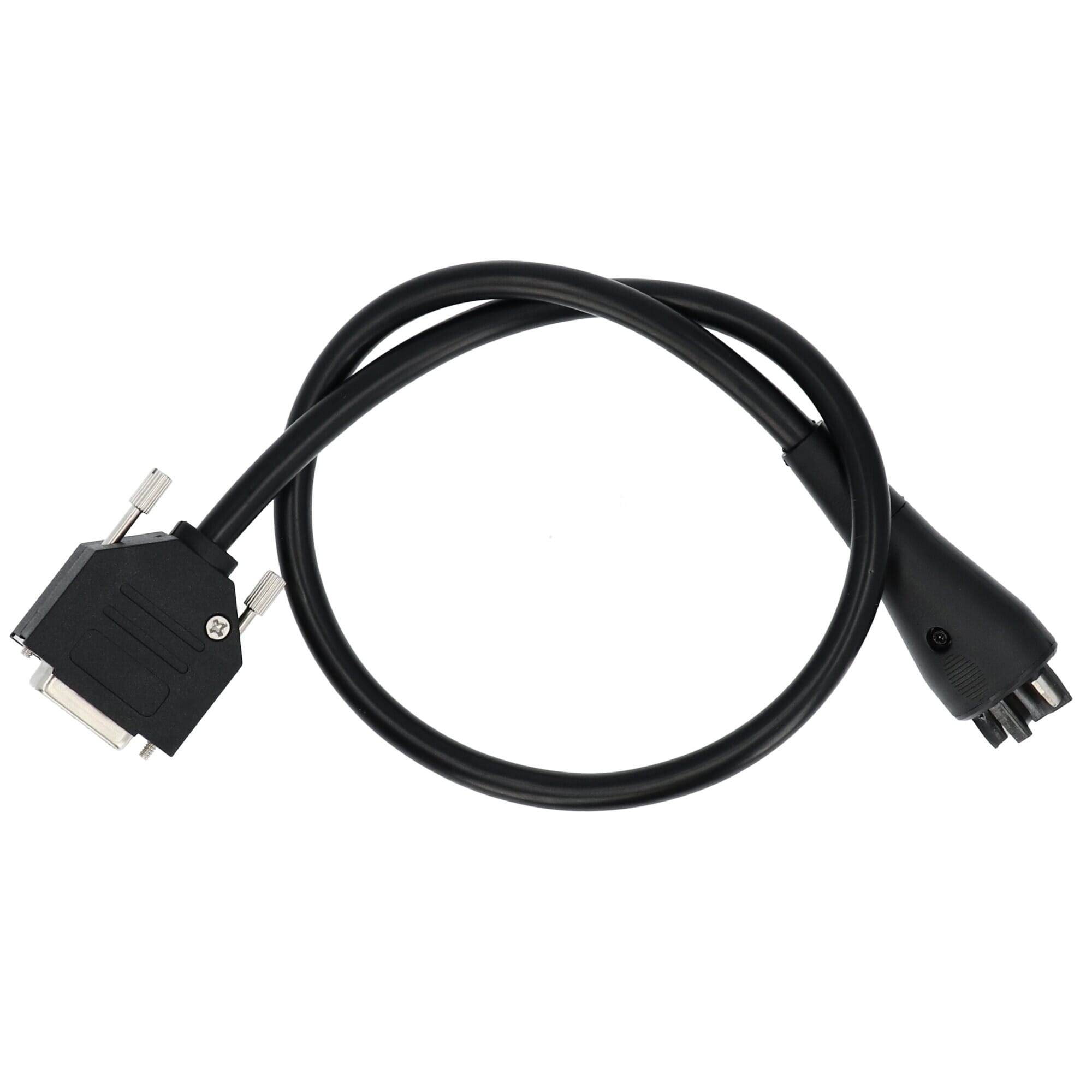

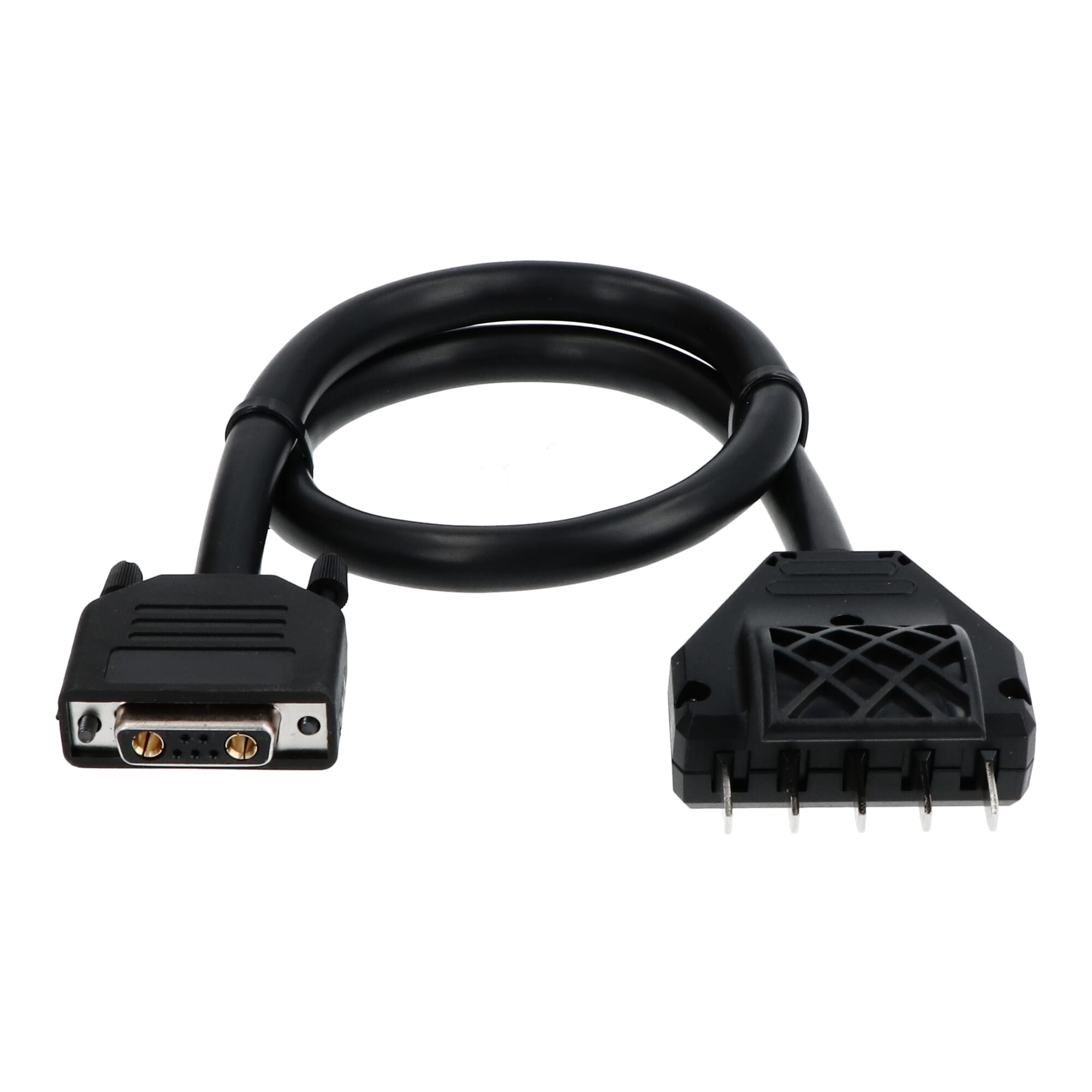

Test Tower adapters

FAQ

Basic

When should the original e-bike battery be replaced?

An e-bike battery has a lifespan of about three to five years with normal use and 500 to 1000 charging cycles. When the capacity noticeably decreases and the range becomes smaller over time, it is an indication that replacement is needed. If there is visible damage to the casing, the battery should be replaced immediately. Some dealers can read the battery and determine the SOH (State of Health) and remaining capacity. Based on that, a decision can be made on whether replacement is necessary.

What are the benefits of the E-Bike Vision battery?

A greater range: All E-Bike Vision batteries contain considerably more energy than the original batteries. Using these batteries increases the range and enables longer tours.

More comfort: All E-Bike Vision batteries are equipped with an additional external charging socket. In combination with the associated chargers, it is possible for the first time to charge the battery directly on the pedelec without removing it.

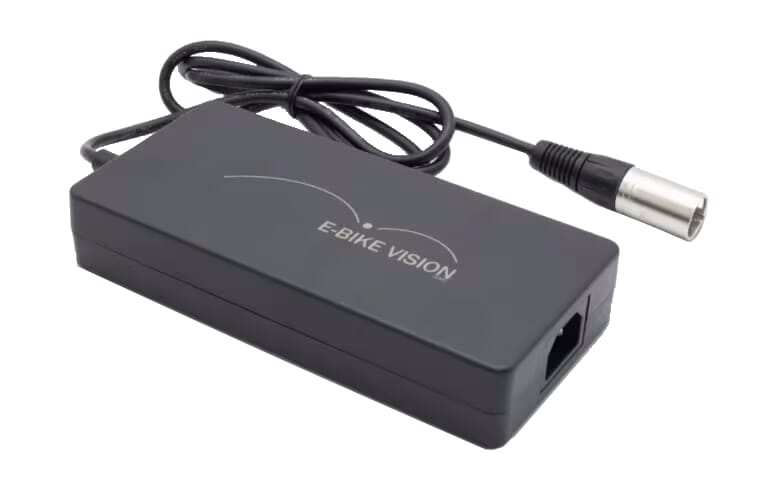

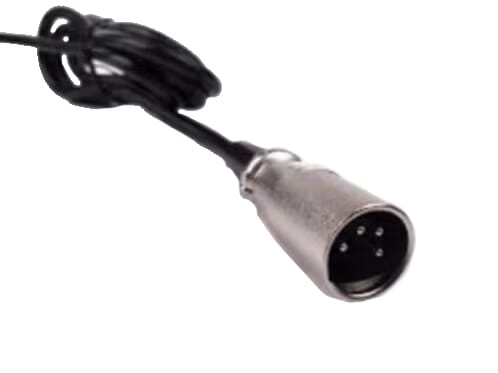

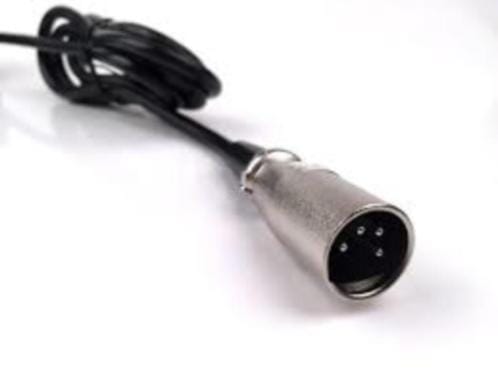

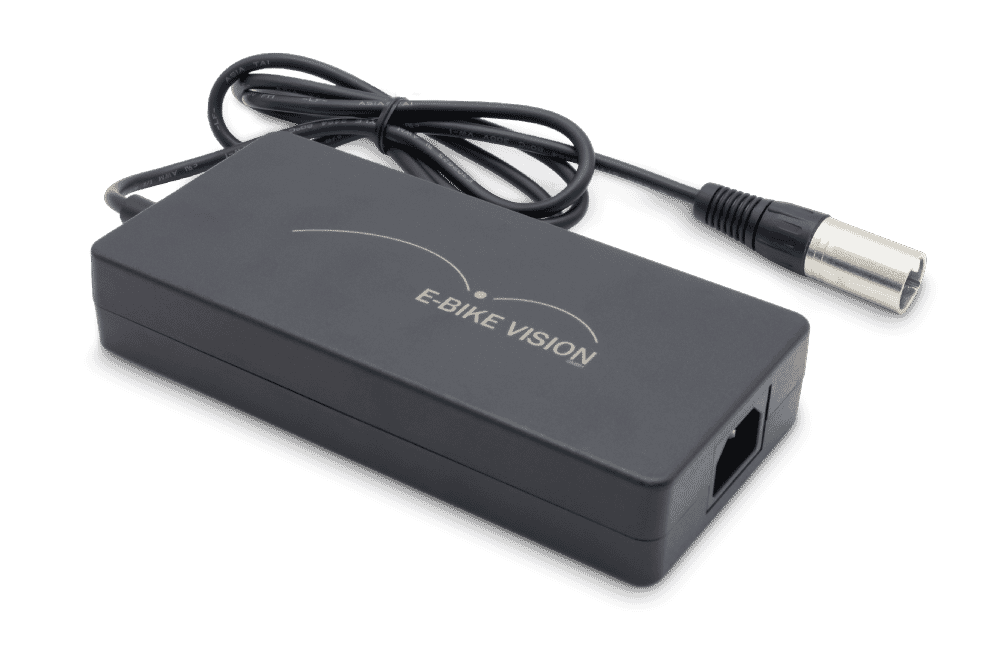

Shorter charging time: When speed is important, the 6A quick charger can reduce the charging time by up to 40%.

Light weight: The Bosch Lite batteries are particularly lightweight.

Why do the E-Bike Vision Batteries have a higher capacity than the original batteries from the manufacturer?

Because these batteries use the latest developments in cylindrical lithium-ion cells and either contain higher capacity cells or more cylindrical cells are integrated into the E-Bike Vision batteries.

How far can you go with the E-Bike Vision Batteries?

Since there is currently no standardised method for calculating the range, we are unfortunately unable to make any binding statements about this. The range of a pedelec depends on many factors. The available energy in the battery is of course essential, and this is the focus of every product development.

In addition, there are various limiting factors that make determining the range complex, such as:

  • Traject profile
  • Weight of the rider
  • Outside temperature
  • Wind conditions
  • Support levelMotor system
  • Bicycle type and weight
  • Tyre pressure
  • Extra cargo in bicycle bags or baskets

How can an e-bike battery be tested?

A battery can be read with special analyzers, such as a Test Tower at Twindis. A detailed report provides insight into the condition of the battery.


Compatible E-Bike Vision batteries can also be tested at home via a smartphone with the AV-Toolbox app. This app provides a compact overview of selected battery values.

Can the current battery simply be exchanged for an E-Bike Vision replacement battery?

Yes, as long as the compatibility is guaranteed according to the product description and no exceptions are mentioned. Since there are many e-bike manufacturers with different frame geometries, it may happen in rare cases that the E-Bike Vision battery does not fit.

E-Bike Vision Battery Charging

Will the current charger work with the replacement battery?

Yes, with one exception. All E-Bike Vision batteries can be charged with the original charger. The only exception is the E-Bike Vision battery for the Panasonic 36V drive system, which requires an E-Bike Vision charger.

Do the E-Bike Vision (fast) chargers work with original batteries?

No, the (fast) chargers from E-Bike Vision are exclusively designed for charging E-Bike Vision replacement batteries.

No, the original charger cannot be connected to the external charging contact.

No, most e-bike drive system manufacturers use proprietary connector ports and limit the maximum charging current of the battery. Only E-Bike Vision chargers can charge E-Bike Vision batteries via the additional external charging contact. If you do not have an E-Bike Vision charger, you can use the original charger to charge the battery, except for the E-Bike Vision battery for the Panasonic 36V drive system.

How long should the E-Bike Vision battery be charged?

That can be quickly calculated. If the E-Bike Vision battery has a capacity of 17 Ah and you want to charge the empty battery to 100% with a 4A charger, it takes approximately 4.5 hours.

Battery capacity : charging current = approximate charging time

17 Ah : 4 A = 4.25 hours

17 Ah : 7 A = 2.5 hours

The reason we use the words "approximately" here is due to the CC/CV charging procedure. Initially, charging occurs with a constant current (CC), and towards the end, only with a constant voltage (CV). During the CV phase, the current decreases significantly, making the simple calculation method inaccurate. Therefore, about half an hour of extra time is added.

Does the E-Bike Vision Battery always need to be fully charged?

No, the charging procedure can be interrupted in between. This will not damage the E-Bike Vision battery.

Storage and maintenance

How can the battery be stored if it is not used for an extended period?

For long-term storage, such as in winter, there is a specific temperature range in which the lithium-ion battery performs best: around +17°C in a 50% - 70% charged state. This minimizes the chemical aging of the e-bike battery. Typically, the e-bike battery loses about 1% of its capacity per month.

Our E-Bike Vision batteries automatically switch to deep-sleep mode to reduce self-discharge caused by the power draw of the BMS. For the next use, the e-bike battery should be fully charged so that the BMS can calibrate itself.

How can the e-bike battery be maintained?

The e-bike battery requires little attention and maintenance. Dirty spots can be wiped with a damp cloth. Avoid using a steam cleaner for direct treatment of the e-bike battery and motor. Also, do not use grease.
